Advantageous

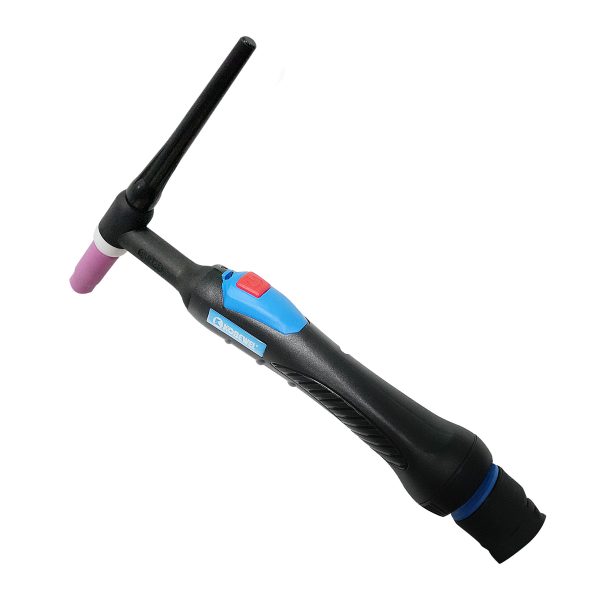

1. Performa bagus TIG Torch dengan komponen berkualitas tinggi.

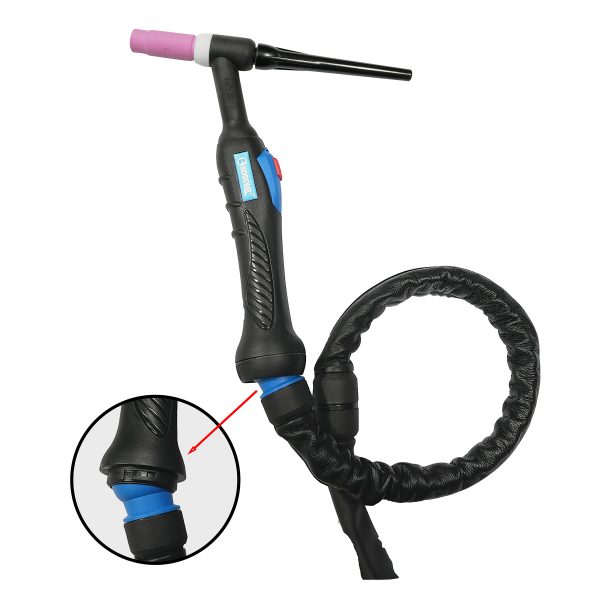

2. Handle dengan grip yang sangat baik & ball joint di ujung handle.

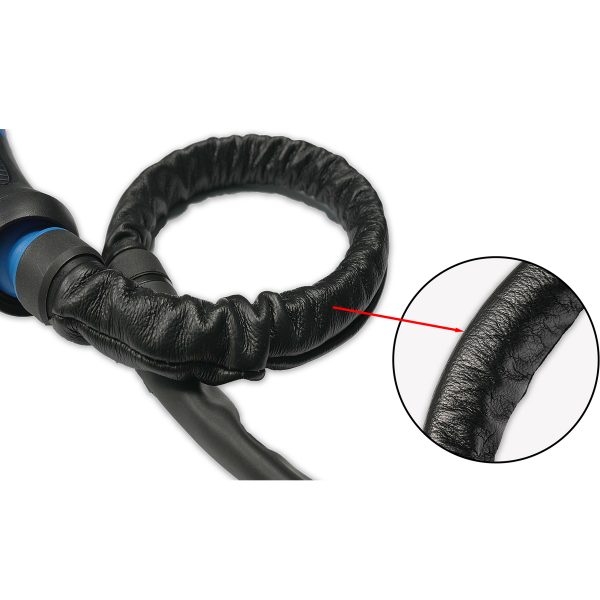

3. Kabel dengan fleksibilitas tinggi, cover pertama yang menggunakan kulit 50 cm, kemudian neoprene untuk fleksibilitas tinggi.
4. Memakai suku cadang yang sesuai dengan standar internasional.
5. Torch body menggunakan Karet Silikon, mengurangi kemungkinan kerusakan yang tidak disengaja saat digunakan atau hilangnya sinyal frekuensi tinggi karena kegagalan torch body.
| Specifications | ||
| Type of Cooling | : | Water |
| Gas Flow | : | 7 - 20 l/min |
| Duty Cycle 100 % DC | : | 340 A |
| Duty Cycle 100 % AC | : | 340 A |
| Tungsten Electrode Ø | : | 1.6 - 4.0 mm |
| Max. Liquid Temp. | : | 60 °C |
| Min. Liquid Flow Rate | : | 1.5 l/min |
| Min. Liquid Pressure | : | 2.0 Bar |
| Max. Liquid Pressure | : | 4.0 Bar |
| Item Code | Item Name | |
| 250.17.006 | TIG Torch - Water Cooled - Pro Tig 18 at 4 m | |
| 250.17.007 | TIG Torch - Water Cooled - Pro Tig 18 at 8 m |
| Pos | Item Code | Item Name | MoQ |
| 1 | 250.18.001.1 | Alumina Nozzle Short - No. 5 (10N49) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack |
| 250.18.002.1 | Alumina Nozzle Short - No. 6 (10N48) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.18.003.1 | Alumina Nozzle Short - No. 7 (10N47) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.18.004.1 | Alumina Nozzle Short - No. 8 (10N46) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.18.005.1 | Alumina Nozzle Short - No. 10 (10N45) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.18.006.1 | Alumina Nozzle Short - No. 12 (10N44) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 2 | 250.19.001.1 | Alumina Nozzle Long - No. 5 (10N49L) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack |
| 250.19.002.1 | Alumina Nozzle Long - No. 6 (10N48L) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.19.003.1 | Alumina Nozzle Long - No. 7 (10N47L) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 3 | 250.22.001.1 | Collet Ø 1.6 mm (10N23) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack |
| 250.22.002.1 | Collet Ø 2.4 mm (10N24) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 250.22.003.1 | Collet Ø 3.2 mm (10N25) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 250.22.004.1 | Collet Ø 4.0 mm (10N26) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 4 | 250.20.001.1 | Alumina Nozzle Short Gas Lens - No. 4 (54N18) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack |
| 250.20.002.1 | Alumina Nozzle Short Gas Lens - No. 5 (54N17) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.20.003.1 | Alumina Nozzle Short Gas Lens - No. 6 (54N16) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.20.004.1 | Alumina Nozzle Short Gas Lens - No. 7 (54N15) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.20.005.1 | Alumina Nozzle Short Gas Lens - No. 8 (54N14) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.20.006.1 | Alumina Nozzle Short Gas Lens - No.12 (54N19) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 5 | 250.21.001.1 | Alumina Nozzle Long Gas Lens - No. 5 (54N17L) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack |
| 250.21.002.1 | Alumina Nozzle Long Gas Lens - No. 6 (54N16L) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack | |
| 250.21.003.1 | Alumina Nozzle Long Gas Lens - No. 7 (54N15L) - Pro Tig 17 - 26 - 18 - 10 Pcs | 1 Pack |
| Pos | Item Code | Item Name | MoQ |
| 6 | 250.24.001.1 | Collet Body Gas Lens Ø 1.6 mm (45V25) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack |
| 250.24.002.1 | Collet Body Gas Lens Ø 2.4 mm (45V26) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 250.24.003.1 | Collet Body Gas Lens Ø 3.2 mm (45V27) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 250.24.004.1 | Collet Body Gas Lens Ø 4.0 mm (45V28) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 7 | 250.24.005.1 | Collet Body Gas Lens Insulator (54N01) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack |
| 8 | 250.33.005.1 | Torch Body - ProTIG 18 | 1 Pack |
| 9 | 250.22.001.1 | Collet Ø 1.6 mm (10N23) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack |
| 250.22.002.1 | Collet Ø 2.4 mm (10N24) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 250.22.003.1 | Collet Ø 3.2 mm (10N25) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 250.22.004.1 | Collet Ø 4.0 mm (10N26) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack | |
| 10 | 250.25.001.1 | Back Cap Long (57Y02) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack |
| 250.25.002.1 | Back Cap Short (57Y04) - Pro Tig 17 - 26 - 18 - 5 Pcs | 1 Pack |
