Keunggulan Produk
1. Performa bagus TIG Torch dengan komponen berkualitas tinggi.

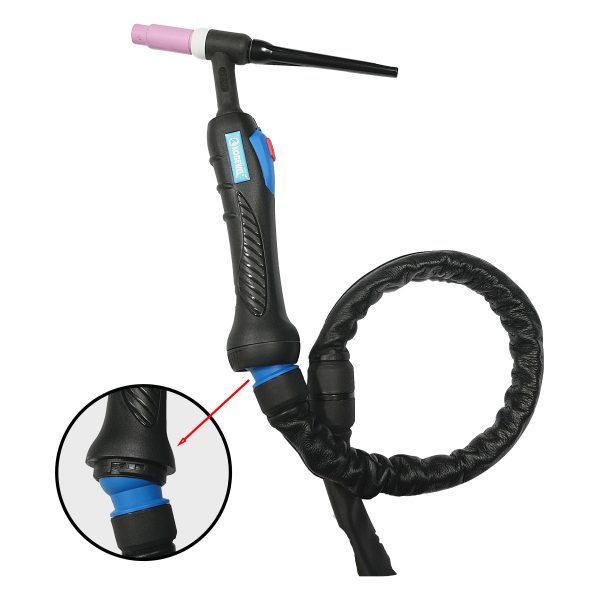

2. Handle dengan grip yang sangat baik & ball joint di ujung handle.

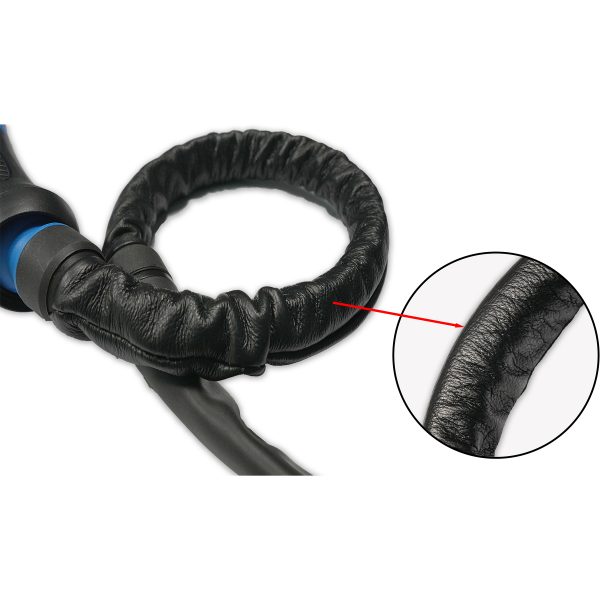

3. Kabel dengan fleksibilitas tinggi, cover pertama yang menggunakan kulit 50 cm, kemudian neoprene untuk fleksibilitas tinggi.
4. Memakai suku cadang yang sesuai dengan standar internasional.
5. Torch body menggunakan Karet Silikon, mengurangi kemungkinan kerusakan yang tidak disengaja saat digunakan atau hilangnya sinyal frekuensi tinggi karena kegagalan torch body.
| Spesifikasi | ||
| Jenis Pendinginan | : | Udara |
| Aliran gas | : | 7 - 15 l/min |
| Duty Cycle 35 % DC | : | 150 A |
| Duty Cycle 35 % AC | : | 125 A |
| Elektroda tungsten Ø | : | 1.6 - 3.2 mm |
| Item Code | Item Name | |

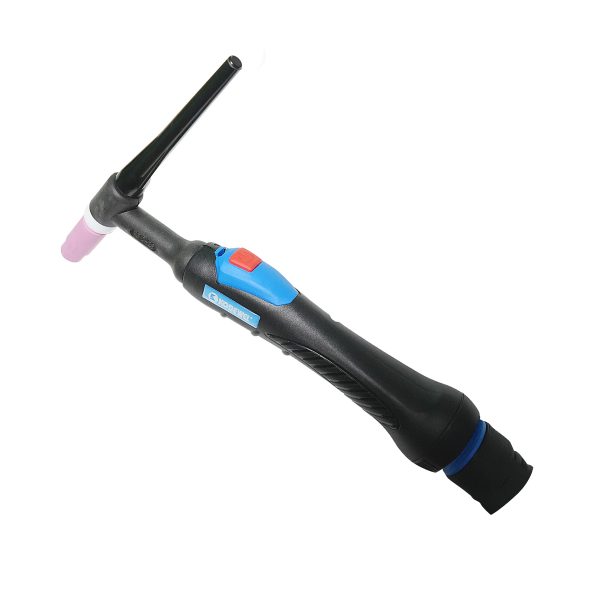

| 250.17.001 | TIG Torch - Air Cooled - Pro Tig 17 at 4 m |
[ultimate_info_table design_style=”design02″ color_scheme=”custom” color_bg_main=”#ffffff” color_txt_main=”#000000″ color_bg_highlight=”#1e73be” color_txt_highlight=”#ffffff”]
| Pos | Image | Item Code | Item Name | MoQ |

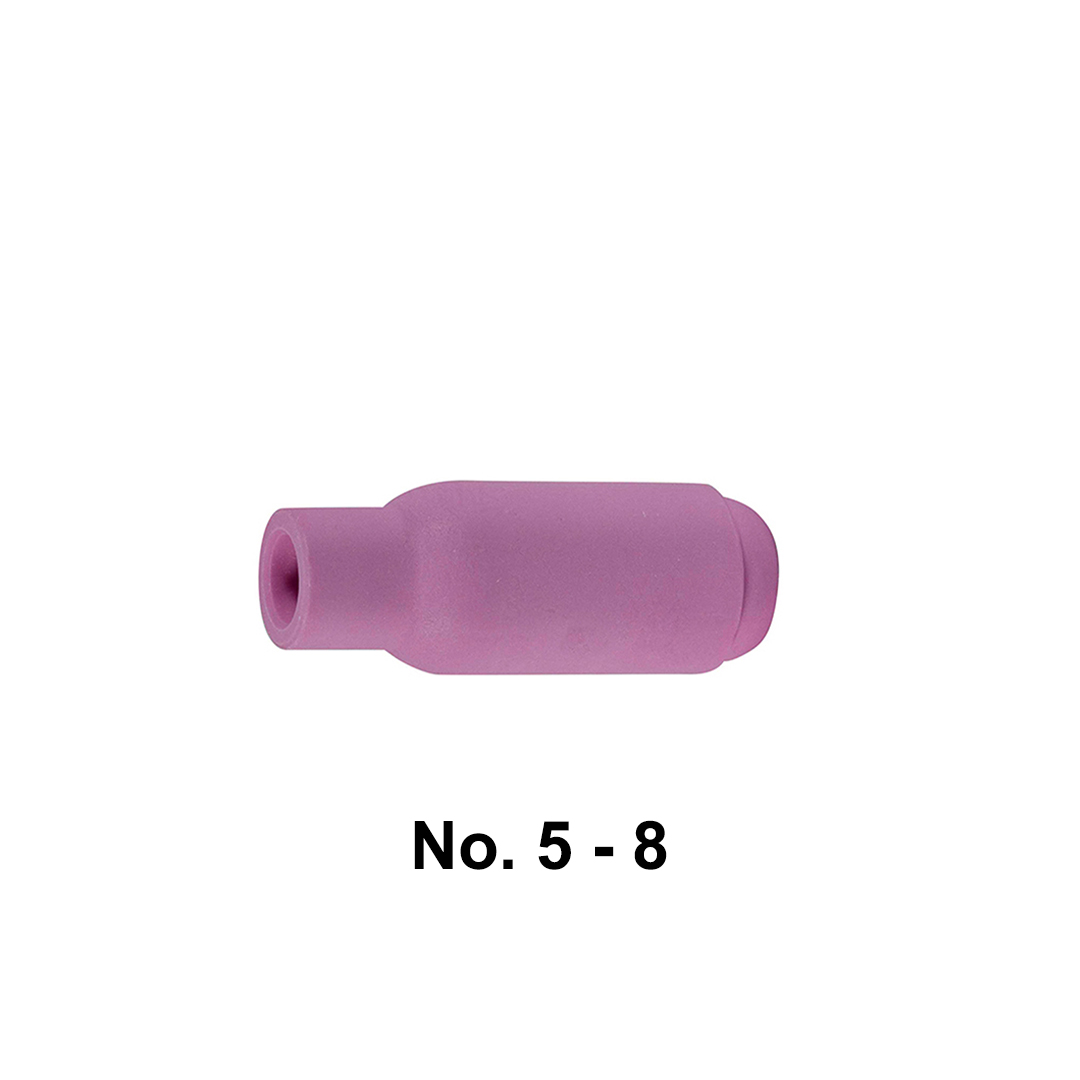

| 1 |  | 250.18.001.1 | Alumina Nozzle Short – No. 5 (10N49) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack |
| 250.18.002.1 | Alumina Nozzle Short – No. 6 (10N48) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.18.003.1 | Alumina Nozzle Short – No. 7 (10N47) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.18.004.1 | Alumina Nozzle Short – No. 8 (10N46) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| | ||||

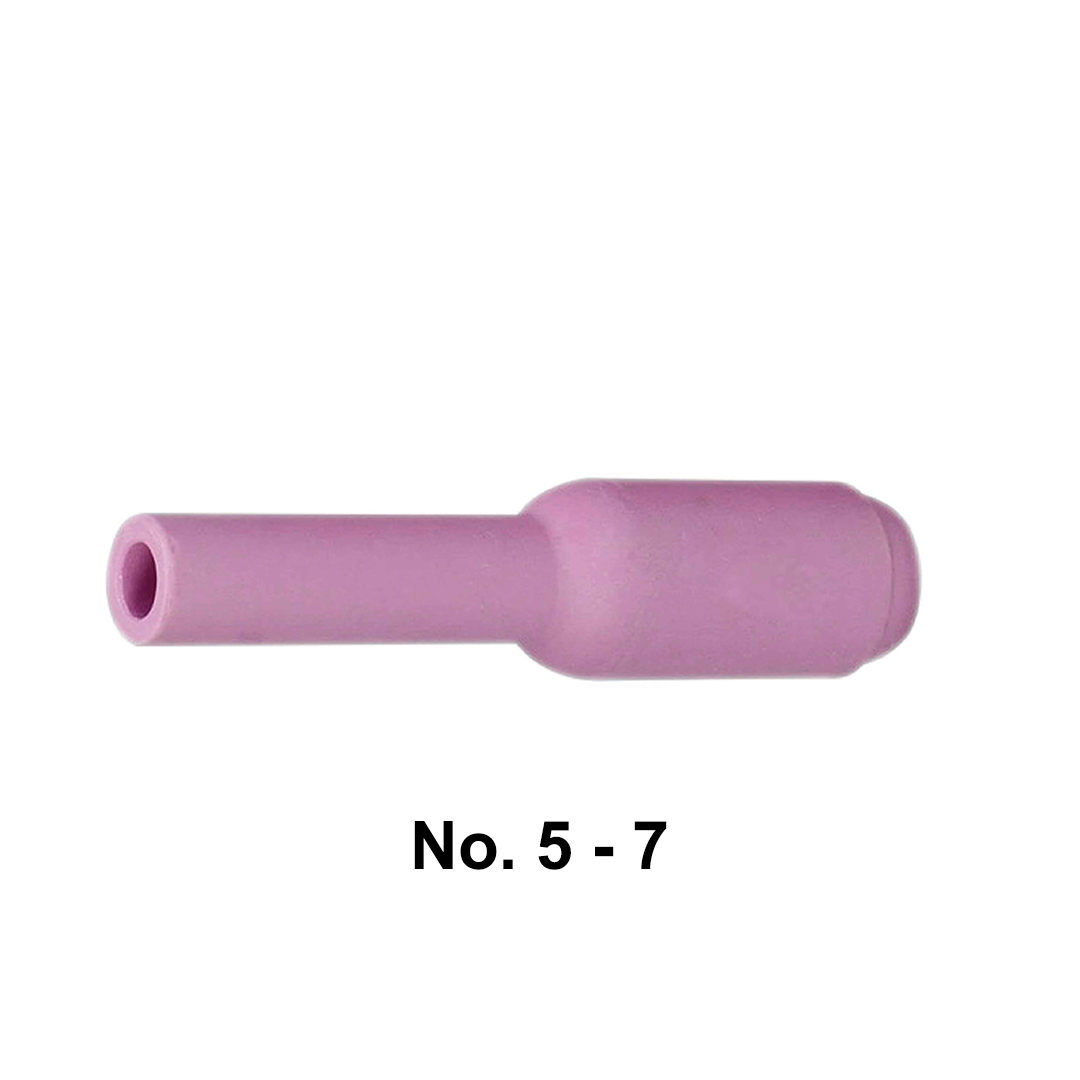

| 2 |  | 250.19.001.1 | Alumina Nozzle Long – No. 5 (10N49L) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack |
| 250.19.002.1 | Alumina Nozzle Long – No. 6 (10N48L) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.19.003.1 | Alumina Nozzle Long – No. 7 (10N47L) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| | ||||

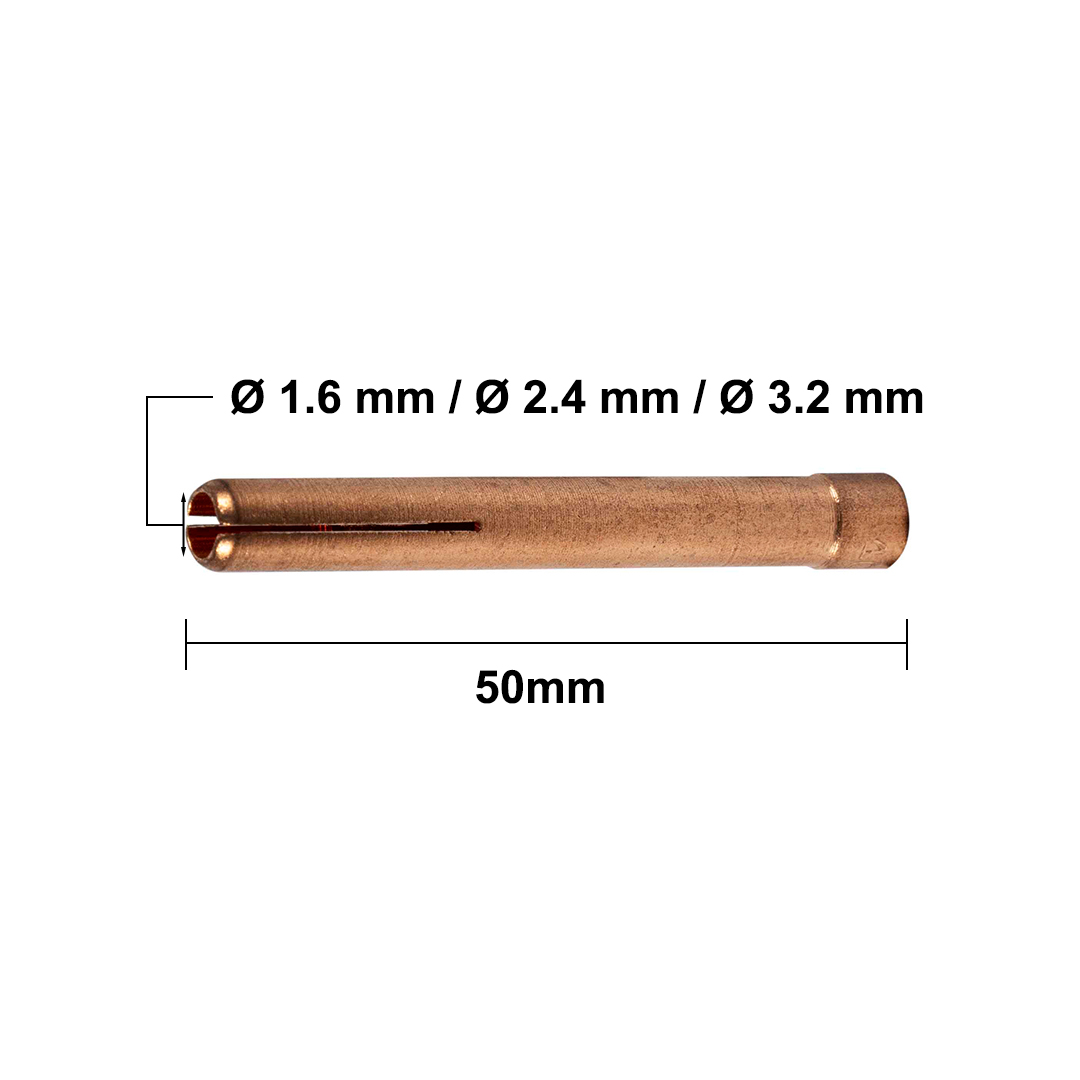

| 3 |  | 250.22.001.1 | Collet Ø 1.6 mm (10N23) – Pro Tig 17 – 26 – 18 – 5 Pcs | 1 Pack |
| 250.22.002.1 | Collet Ø 2.4 mm (10N24) – Pro Tig 17 – 26 – 18 – 5 Pcs | 1 Pack | ||
| 250.22.003.1 | Collet Ø 3.2 mm (10N25) – Pro Tig 17 – 26 – 18 – 5 Pcs | 1 Pack | ||
| | ||||

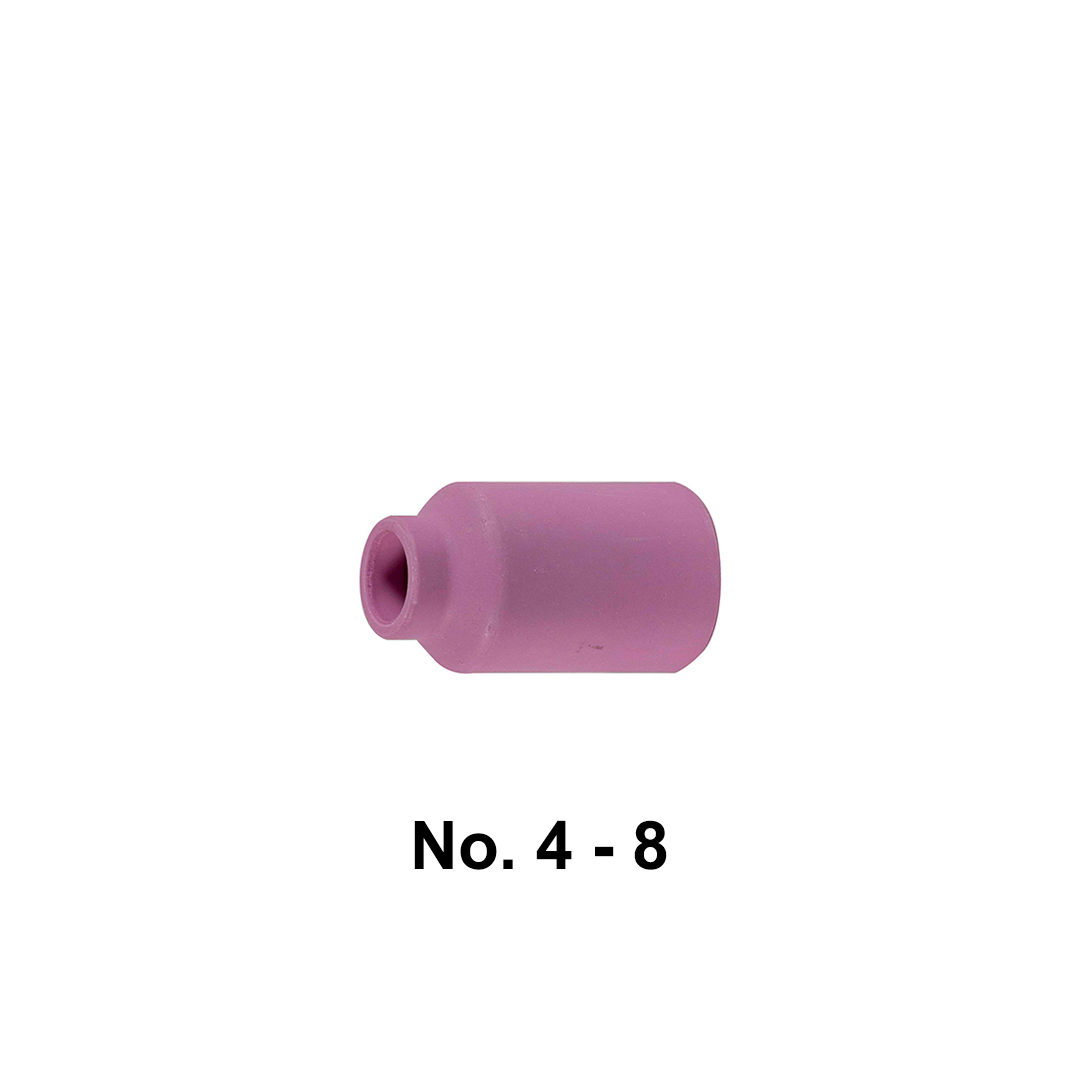

| 4 |  | 250.20.001.1 | Alumina Nozzle Short Gas Lens – No. 4 (54N18) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack |
| 250.20.002.1 | Alumina Nozzle Short Gas Lens – No. 5 (54N17) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.20.003.1 | Alumina Nozzle Short Gas Lens – No. 6 (54N16) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.20.004.1 | Alumina Nozzle Short Gas Lens – No. 7 (54N15) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.20.005.1 | Alumina Nozzle Short Gas Lens – No. 8 (54N14) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| | ||||

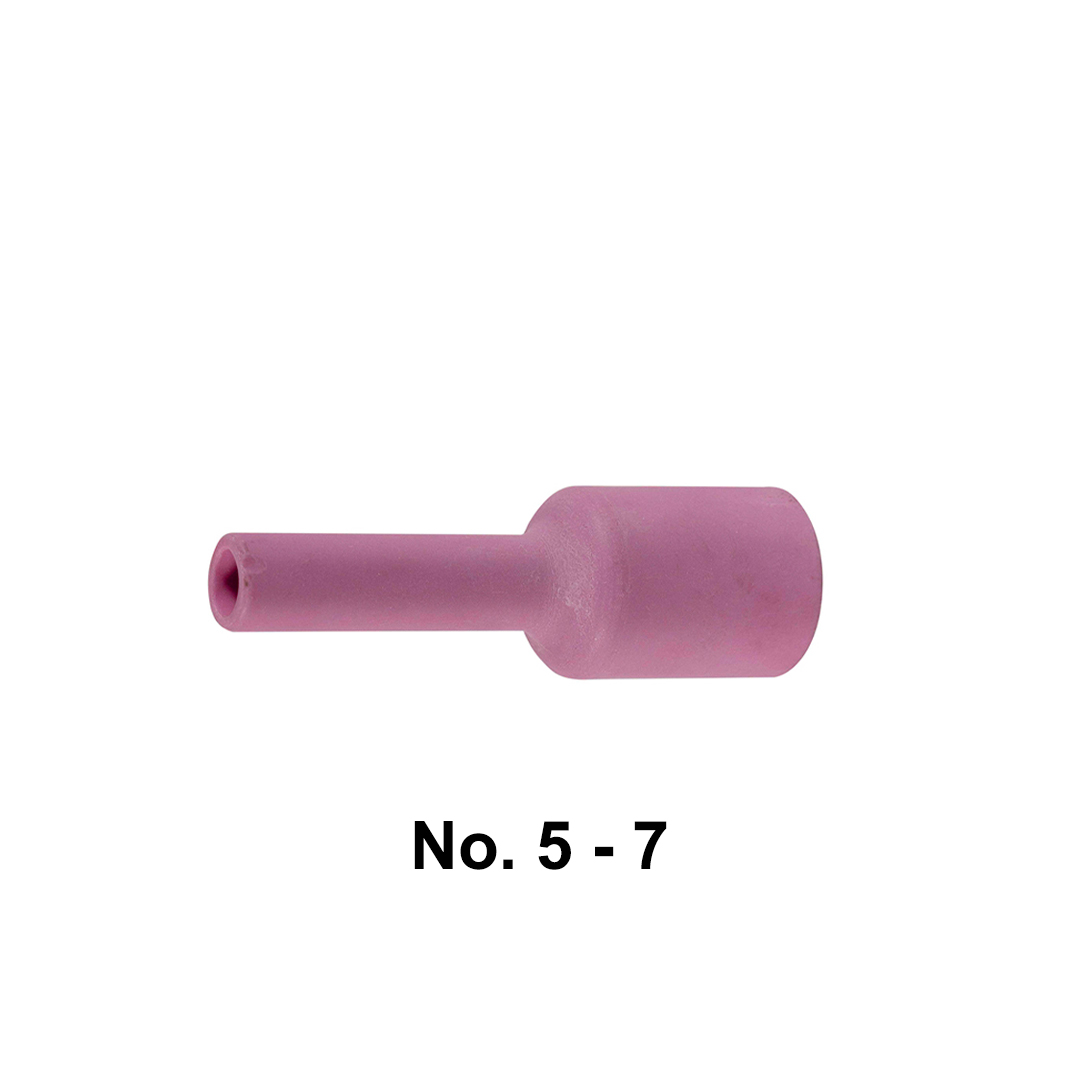

| 5 |  | 250.21.001.1 | Alumina Nozzle Long Gas Lens – No. 5 (54N17L) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack |
| 250.21.002.1 | Alumina Nozzle Long Gas Lens – No. 6 (54N16L) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| 250.21.003.1 | Alumina Nozzle Long Gas Lens – No. 7 (54N15L) – Pro Tig 17 – 26 – 18 – 10 Pcs | 1 Pack | ||
| | ||||

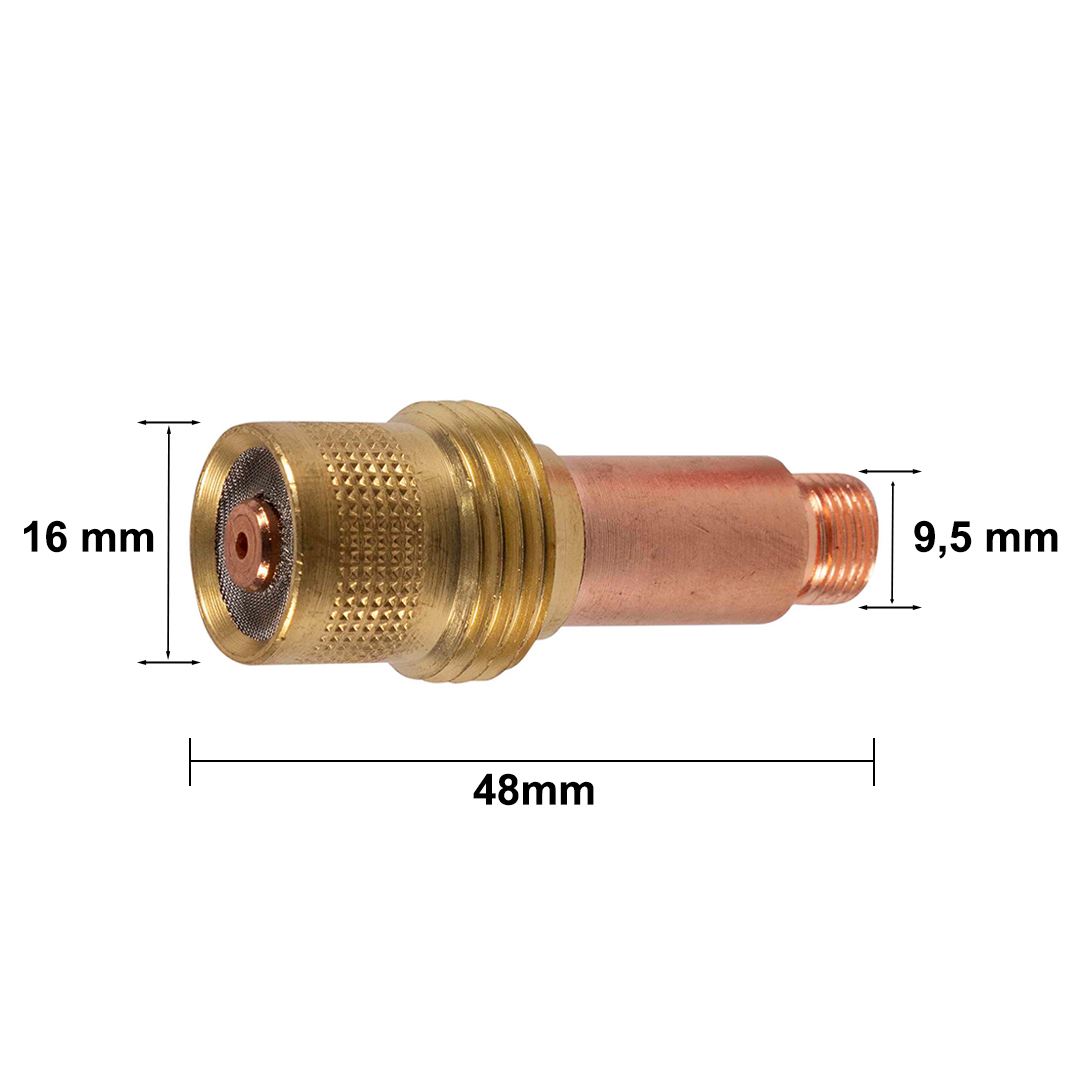

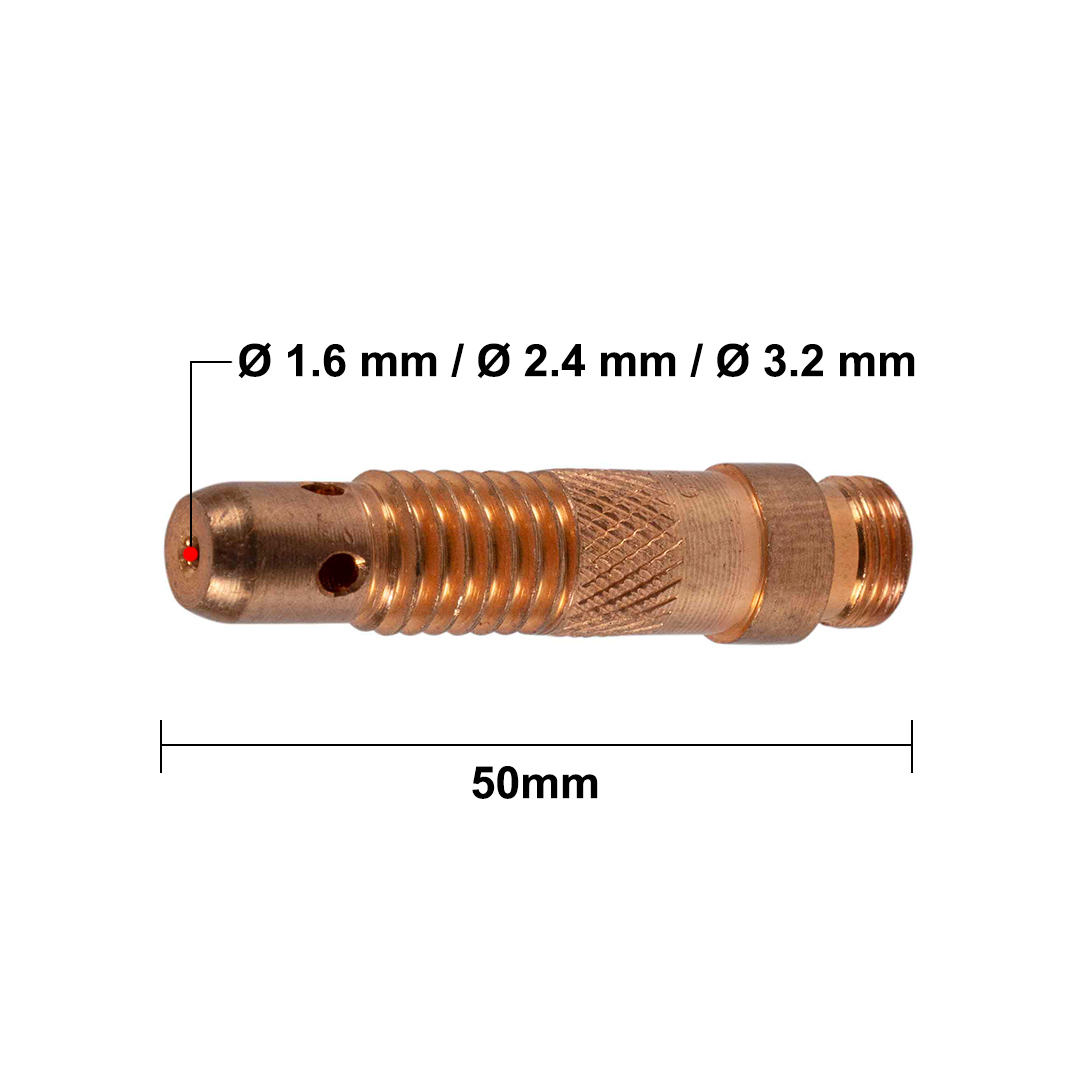

| 6 |  | 250.24.001.1 | Collet Body Gas Lens Ø 1.6 mm (45V25) – Pro Tig 17 – 26 – 18 – 5 Pcs | 10 Pcs |
| 250.24.002.1 | Collet Body Gas Lens Ø 2.4 mm (45V26) – Pro Tig 17 – 26 – 18 – 5 Pcs | 10 Pcs | ||
| 250.24.003.1 | Collet Body Gas Lens Ø 3.2 mm (45V27) – Pro Tig 17 – 26 – 18 – 5 Pcs | 10 Pcs | ||
| | ||||

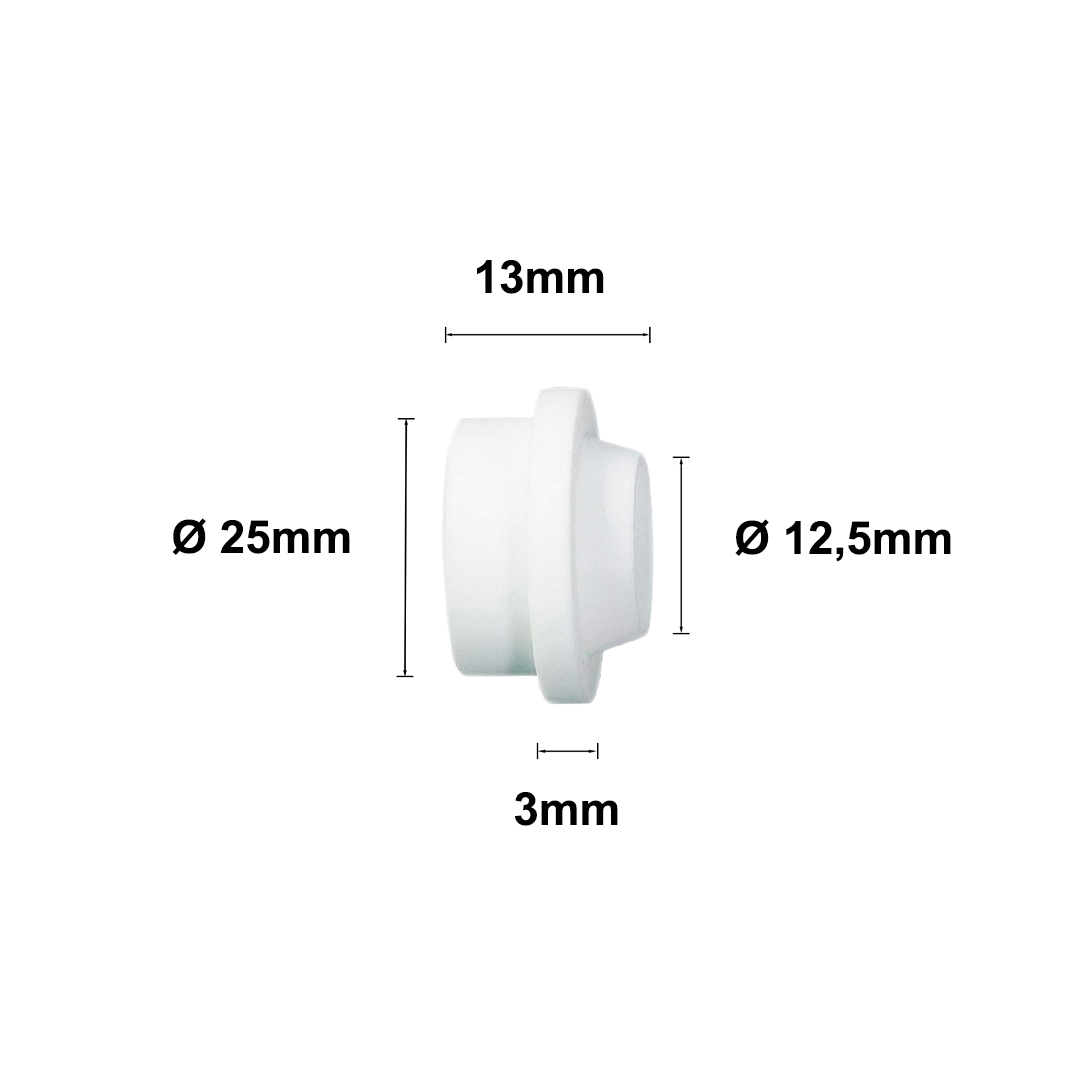

| 7 |  | 250.24.005.1 | Collet Body Gas Lens Insulator (54N01) – Pro Tig 17 – 26 – 18 – 5 Pcs | 3 Pcs |
| | | |||
| 8 | | 250.33.001.1 | Torch Body – ProTIG 17 | 3 Pcs |
| | ||||
| 9 |  | 250.22.001.1 | Collet Ø 1.6 mm (10N23) – Pro Tig 17 – 26 – 18 – 5 Pcs | 3 Pcs |
| 250.22.002.1 | Collet Ø 2.4 mm (10N24) – Pro Tig 17 – 26 – 18 – 5 Pcs | 1 Pc | ||
| 250.22.003.1 | Collet Ø 3.2 mm (10N25) – Pro Tig 17 – 26 – 18 – 5 Pcs | 1 Pc | ||
| | ||||

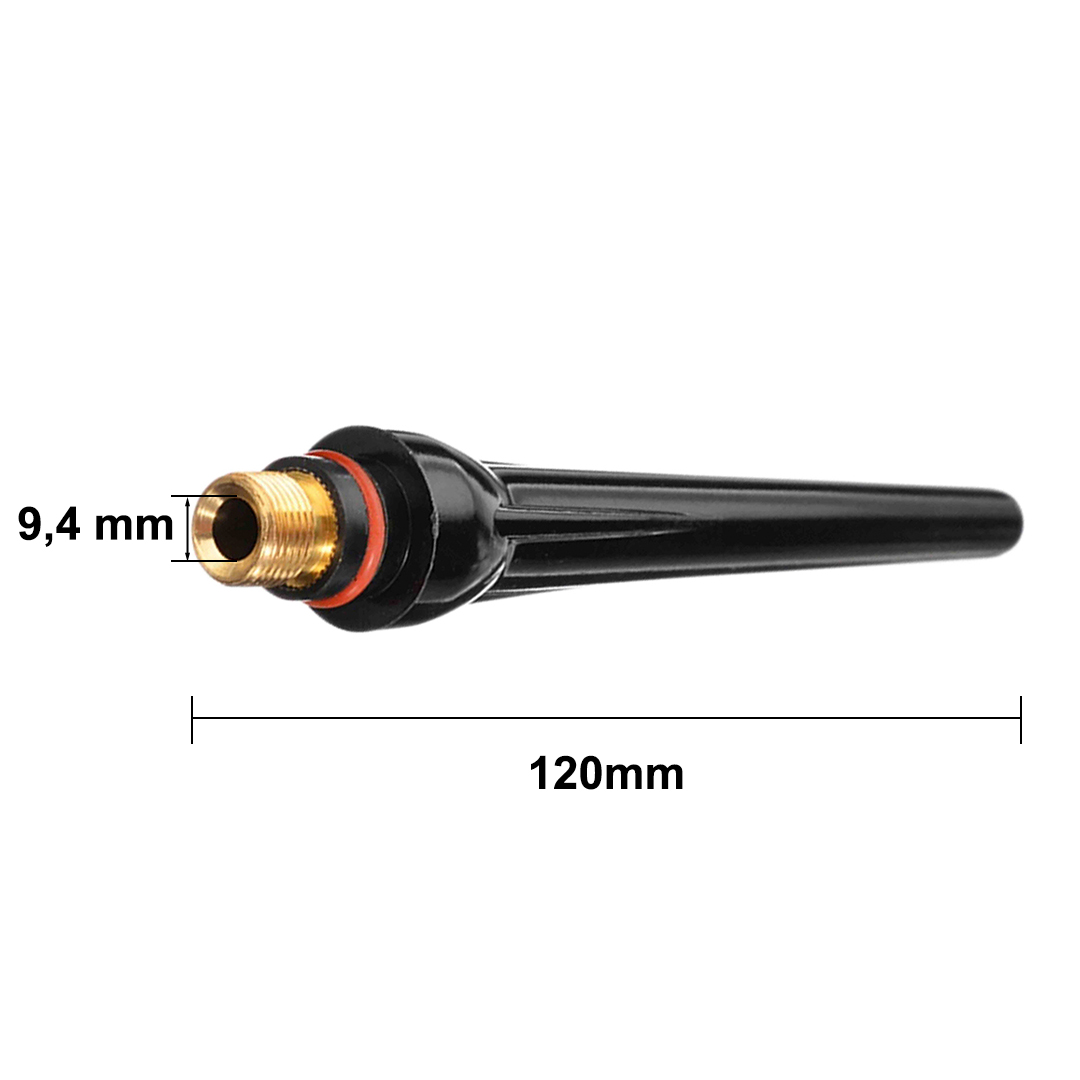

| 10 |  | 250.25.001.1 | Back Cap Long (57Y02) – Pro Tig 17 – 26 – 18 – 5 Pcs | 5 Pcs |

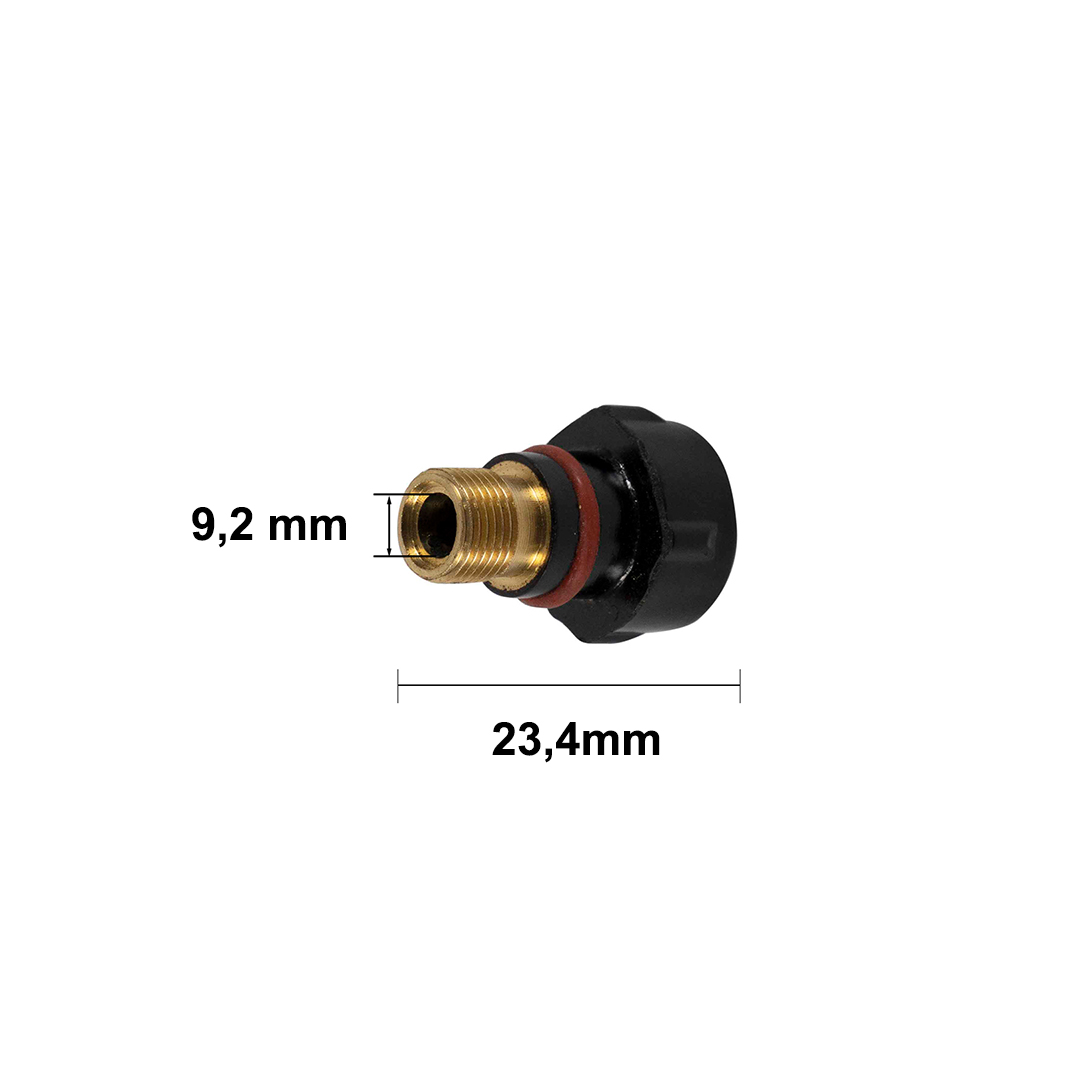

 | 250.25.002.1 | Back Cap Short (57Y04) – Pro Tig 17 – 26 – 18 – 5 Pcs | 5 Pcs | |
