Keunggulan Produk
1. Tig torch yang paling dikenal di dunia.
2. Kualitas dan teknologi tinggi untuk kinerja yang terbebas dari masalah pekerjaan pengelasan apapun.
3. Kabel las sangat fleksibel dengan tingkat isolasi tinggi.
4. Memakai komponen yang kompatibel dengan standar internasional.
5. Bodi torch karet silikon, mengurangi kemungkinan kerusakan yang tidak disengaja selama penggunaan atau hilangnya sinyal frekuensi tinggi karena kegagalan bodi torch.
| Spesifikasi | ||
| Jenis Pendinginan | : | Udara |
| Duty Cycle 35 % DC | : | 180 A |
| Duty Cycle 35 % AC | : | 150 A |
| Elektroda tungsten Ø | : | 1.6 - 4.0 mm |
| Item Code | Item Name | |

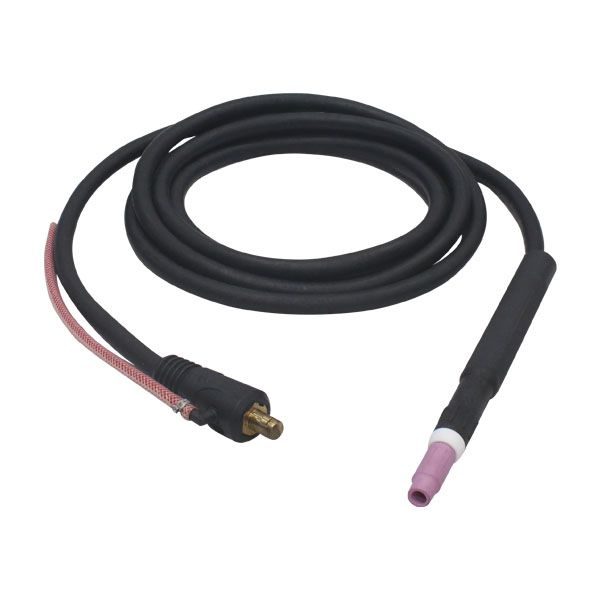

| 203.16.020 | Auto Tig 26, 4m, with adaptor M12x1 |
| Pos | Item Code | Item Name | MoQ |
| 1 | 203.17.001 | Alumina Nozzle Short No. 5 (10N49) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.17.002 | Alumina Nozzle Short No. 6 (10N48) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.003 | Alumina Nozzle Short No. 7 (10N47) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.004 | Alumina Nozzle Short No. 8 (10N46) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.005 | Alumina Nozzle Short No. 10 (10N45) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.006 | Alumina Nozzle Short No. 12 (10N44) - TIG 17 - 26 - 18 | 5 Pcs | |
| 2 | 203.18.001 | Alumina Nozzle Long No. 5 (10N49L) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.18.002 | Alumina Nozzle Long No. 6 (10N48L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.18.003 | Alumina Nozzle Long No. 7 (10N47L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 3 | 203.22.001 | Collet Body Ø 1.6 mm (10N31) - TIG 17 - 26 - 18 | 2 Pcs |
| 203.22.002 | Collet Body Ø 2.4 mm (10N32) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.22.003 | Collet Body Ø 3.2 mm ( 10N28 ) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.22.004 | Collet Body Ø 4.0 mm ( 406488 ) - TIG 17 - 26 - 18 | 2 Pcs | |
| 4 | 203.19.001 | Alumina Nozzle Short Gas Lens No. 4 (54N18) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.19.002 | Alumina Nozzle Short Gas Lens No. 5 (54N17) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.003 | Alumina Nozzle Short Gas Lens No. 6 (54N16) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.004 | Alumina Nozzle Short Gas Lens No. 7 (54N15) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.005 | Alumina Nozzle Short Gas Lens No. 8 (54N14) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.006 | Alumina Nozzle Short Gas Lens No. 12 (54N19) - TIG 17 - 26 - 18 | 5 Pcs |
| Pos | Item Code | Item Name | MoQ |
| 5 | 203.20.001 | Alumina Nozzle Long Gas Lens No. 5 (54N17L) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.20.002 | Alumina Nozzle Long Gas Lens No. 6 (54N16L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.20.003 | Alumina Nozzle Long Gas Lens No. 7 (54N15L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 6 | 203.23.001 | Collet Body Gas Lens Ø 1.6 mm (45V25) - TIG 17 - 26 - 18 | 2 Pcs |
| 203.23.002 | Collet Body Gas Lens Ø 2.4 mm (45V26) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.23.003 | Collet Body Gas Lens Ø 3.2 mm (45V27) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.23.004 | Collet Body Gas Lens Ø 4.0 mm (45V28) - TIG 17 - 26 - 18 | 2 Pcs | |
| 7 | 203.23.005 | Collet Body Gas Lens Insulator (54N01) - TIG 17 - 26 - 18 | 2 Pcs |
| 8 | 203.21.001 | Collet Ø 1.6 mm (10N23) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.21.002 | Collet Ø 2.4 mm (10N24) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.21.003 | Collet Ø 3.2 mm (10N25) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.21.004 | Collet Ø 4.0 mm (54N20) - TIG 17 - 26 - 18 | 5 Pcs | |

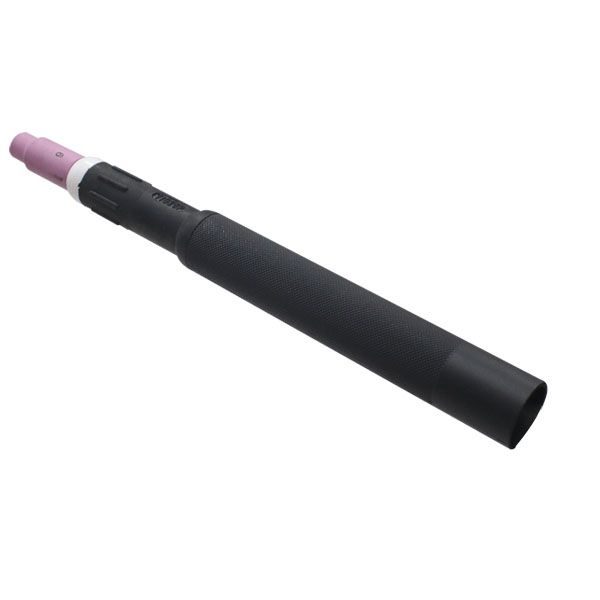

| 9 | 203.32.015 | Auto Tig 26 Torch Head | 1 Pc |
| 10 | 503.01.033 | Black Handle | 1 Pc |
