Keunggulan Produk

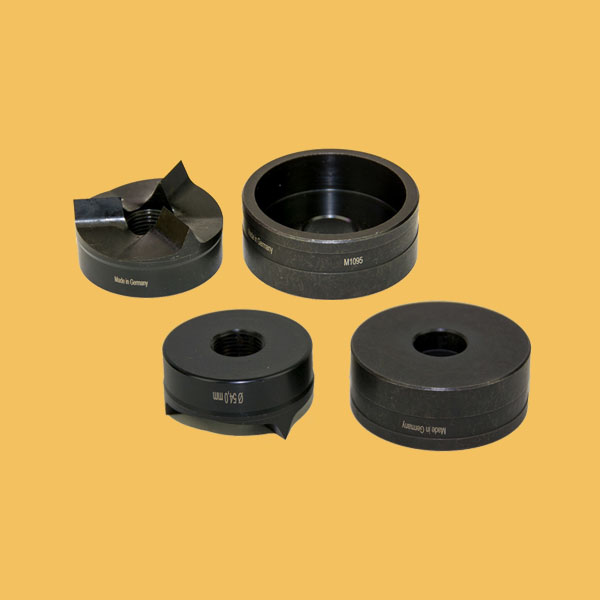

● Sistem Punch & Die dengan Punch Splitter untuk Steel St. 37.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Mampu untuk semak kabel.
● Berlaku untuk mesin hidrolik Compact, Compact Combi, Hand dan Foot pump.
Lihat di bawah untuk Diameter
| Item Code | Item Name | PG | Inch | M | Conduit |

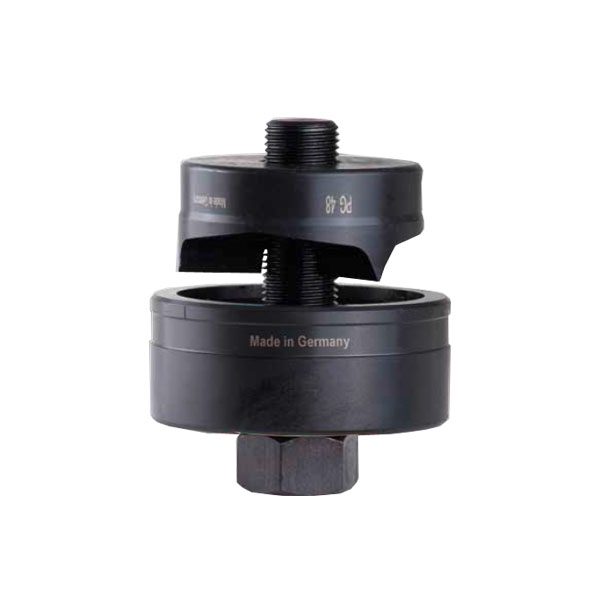

| 209.30.001 | Split hole punch TriCut Ø 12.5 mm | PG 7 | 1/2" | M 12 | |
| 209.30.002 | Split hole punch TriCut Ø 15.2 mm | PG 9 | |||
| 209.30.003 | Split hole punch TriCut Ø 16.2 mm | M 16 | |||
| 209.30.004 | Split hole punch TriCut Ø 18.6 mm | PG 11 | |||
| Split hole punch TriCut Ø 19.0 mm | 3/4" | ||||
| 209.30.005 | Split hole punch TriCut Ø 20.4 mm | M 20 | PG 13 | ||
| 209.30.006 | Split hole punch TriCut Ø 22.5 mm | PG 16 | 7/8" | 1/2" | |
| 209.30.007 | Split hole punch TriCut Ø 25.4 mm | 1" | M 25 | ||
| 209.30.008 | Split hole punch TriCut Ø 28.3 mm | PG 21 | 3/4" | ||
| 209.30.009 | Split hole punch TriCut Ø 28.3 mm | PG 21 | 3/4" | ||
| 209.30.010 | Split hole punch TriCut Ø 30.5 mm | 1-7/32" |
| Item Code | Item Name | PG | Inch | M | Conduit |
| Split hole punch TriCut Ø 31.7 mm | 1-1/4" | ||||
| 209.30.011 | Split hole punch TriCut Ø 32.5 mm | M 32 | |||
| 209.30.012 | Split hole punch TriCut Ø 34.6 mm | 1" | |||
| 209.30.013 | Split hole punch TriCut Ø 37.0 mm | PG 29 | |||
| 209.30.014 | Split hole punch TriCut Ø 40.5 mm | M 40 | |||
| 209.30.015 | Split hole punch TriCut Ø 43.2 mm | 1-11/16" | 1-1/4" | ||
| 209.30.016 | Split hole punch TriCut Ø 47.0 mm | PG 36 | |||
| 209.30.017 | Split hole punch TriCut Ø 49.6 mm | 1-5/16" | 1-1/2" | ||
| 209.30.018 | Split hole punch TriCut Ø 50.5 mm | M 50 | |||
| 209.30.019 | Split hole punch TriCut Ø 54.0 mm | PG 42 | 2-1/8" | ||
| 209.30.020 | Split hole punch TriCut Ø 60.0 mm | PG 48 | |||
| 209.30.021 | Split hole punch TriCut Ø 61.5 mm | 2-3/8" | 2" | ||
| 209.30.022 | Split hole punch TriCut Ø 63.5.mm | M 63 | 2-1/2" |
| Dia. from | Dia. to | Item Code | Item Name |
| Ø 12.5 mm | 209.34.001 | Hydraulic Screws - 19 reduced to 6.0 mm | |
| Ø 15.2 mm | Ø 28.3 mm | 209.34.003 | Hydraulic Screws - 19 reduced to 9.5 mm |
| Ø 28.3 mm | 209.34.002 | Hydraulic Screws - 19 x 120 mm | |
| Ø 30.5 mm | 209.34.003 | Hydraulic Screws - 19 reduced to 9.5 mm | |
| Ø 32.5 mm | Ø 63.5 mm | 209.34.002 | Hydraulic Screws - 19 x 120 mm |
