Penggunaan Utama
● Lembaran logam baja
● Konstruksi dan galangan kapal
● Pengelasan pipa minyak dan gas
● Pengelasan di tempat
Keunggulan

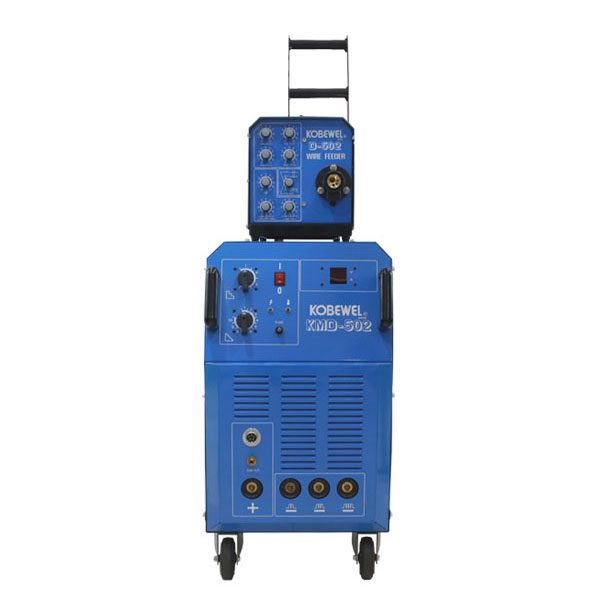

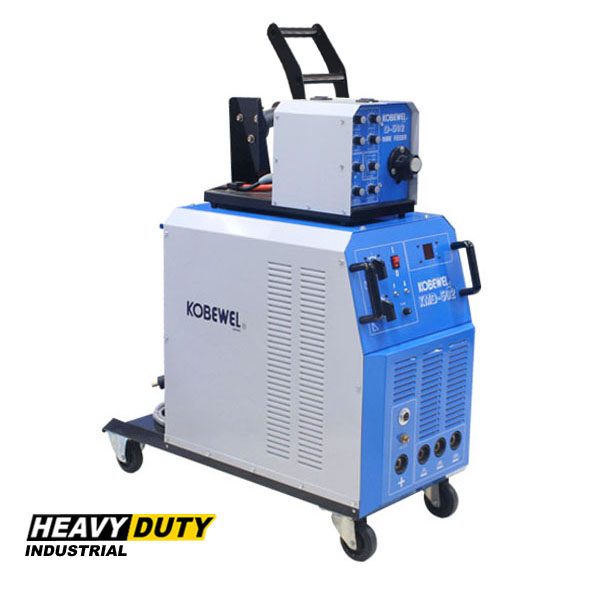

● Mesin Mig Mag dengan desain baru dari Jepang berupa Wire Feeder Terpisah untuk industry ringan hingga berat, menyajikan hasil pengelasan yang sangat andal dan mutu sempurna.
● Teknologi rectifier Jepang yang terbaru untuk menghasilkan karakteristik pengelasan yang sangat baik untuk pengelasan Mig Mag CO2 dan gas campuran.
● Transformator choke yang andal di produksi secara optimal guna pengelasan yang lebih baik dan percikan api yang lebih sedikit.
● Pengelasan interval :dengan pengelasan dan waktu interval.
● Penyesuaian Post gas dan burn back.
● Uji gas dan pemasangan kawat.
● Penyesuaian voltase halus dan kasar.
● Sistem wire feeder yang kokoh, dengan dua feed roll bergigi, drive roll yang mudah diubah dan bisa dibalik serta mudah diatur.
● Inclined wire spool hub untuk transfer kawat dengan mulus dan hasil pengelasan yang lebih baik.
● Komponen internal dilindungi dari kerusakan dengan perlindungan terhadap panas akibat beban berlebih yang secara otomatis mematikan unit.
● Spot welding dengan spot time.
● Silinder gas yang mudah diisi dengan platform yang rendah.
● Kipas mesin yang kuat untuk sistem pendinginan maksimum.
Spesifikasi | |
Rentang pengelasan | 40 - 500 A |
Tegangan sirkuit terbuka | 16 - 39 V |
Tegangan sirkuit terbuka | 49 V |
Pengaturan tegangan | 4 x 10 |
Welding current at 40 % duty cycle | - |
Welding current at 60 % duty cycle | 500 A |
Welding current at 100 % duty cycle | 390 A |
Weldable Steel wire | 0.8 - 2.4 mm |
Weldable Aluminum wire | 0.9 - 2.4 mm |
Wire feed rate | 0.5 - 20 m/min |
Input phase | 3 Phase |
Main voltage | 380 V |
Frequency | 50 / 60 Hz |
Main fuse ( slow - blow ) | 35 A |
Max. power consumption 380 V | 23 KVA |
Power factor | 0.96 |
Index protection | IP 21 |
Insulation class | H |
Jenis pendingin | F |
Emisi kebisingan | < 75 dB ( A ) |
Dimensi mesin (P x L x T) | 950 x 390 x 750 mm |
Berat mesin | 150 Kg |
Dimensi wire feeder (P x L x T) | 550 x 242 x 448 mm |
Berat wire feeder | 21 Kg |
Item Code | Item Name |
101.05.003.1 | KMD 502 - Mig Mag Air Cooled Package |
+ Wire feeder D 285 - 1 unit | |
+ feedroll for steel Ø 0.8/1.0 mm | |
+ interpass cable size 35 mm at 3 m - | |
air cooled - KMD 285 w/o Gas hose - 1 set | |
+ gas nipple size ¼ " | |
Standard Accessories | |
101.05.003 | Mig Mag Step Switch - KMD 502 |
201.11.006 | Plug to Ground Clamp 600 A 70 mm2 at 3 m - KMD 502 |
208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
208.12.002 | Interpass Gas Hose - Blue at 3 m |
Standard Alternative | |
250.02.006 | Mig Torch - Pro Mig 36 at 3 m |
250.02.007 | Mig Torch - Pro Mig 36 at 4 m |
250.02.008 | Mig Torch - Pro Mig 36 at 5 m |
201.23.003 | CO2 Heater 220V Gas Regulator |
201.23.004 | CO2 Fin Type Gas Regulator |
Optional Accessories | |
201.05.001 | Interpass Cable size 70 mm at 10 m Air Cooled - KMD 502 |
201.05.002 | Interpass Cable size 70 mm at 15 m Air Cooled - KMD 502 |
201.05.003 | Interpass Cable size 95 mm at 20 m Air Cooled - KMD 502 |
General Accessories | |
201.22.009 | Welding Helmet - Solarmatic Blue |
201.22.010 | Welding Helmet - Solarmatic Red |
201.22.011 | Welding Helmet - Solarmatic Green |
208.18.002 | Torch Holder - MIG |
Item Code | Item Name |
101.05.003.2 | KMD 502 - Mig Mag Package Air Cooled for Alu |
+ Wire feeder D 285 - 1 unit | |
+ feedroll for steel Ø 0.8/1.0 mm | |
+ interpass cable size 35 mm at 3 m - | |
air cooled - KMD 285 w/o Gas hose - 1 set | |
+ gas nipple size ¼ " | |
Standard Accessories | |
101.05.003 | Mig Mag Step Switch - KMD 502 |
201.11.006 | Plug to Ground Clamp 600 A 70 mm2 at 3 m - KMD 502 |
208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
208.12.002 | Interpass Gas Hose - Blue at 3 m |
201.23.001 | Argon Gas Regulator |
Standard Alternative | |
250.02.006 | Mig Torch - Pro Mig 36 at 3 m |
250.02.007 | Mig Torch - Pro Mig 36 at 4 m |
250.02.008 | Mig Torch - Pro Mig 36 at 5 m |
203.12.007 | Red Teflon Liner 5 m + Copper Liner Aluminum Ø1.0 - 1.2 mm |
203.12.008 | Yellow Teflon Liner 5 m + Copper Liner Aluminum Ø1.2 - 1.6 mm |
203.12.006 | Blue Teflon Liner 5 m + Copper Liner Aluminum Ø0.8 - 0.9 mm |
203.12.009 | Blue Teflon Liner 4 m + Copper Liner Aluminum Ø0.8 - 0.9 mm |
203.12.010 | Red Teflon Liner 4 m + Copper Liner Aluminum Ø1.0 - 1.2 mm |
203.12.011 | Yellow Teflon Liner 4 m + Copper Liner Aluminum Ø1.2 - 1.6 mm |
203.12.012 | Blue Teflon Liner 3 m + Copper Liner Aluminum Ø0.8 - 0.9 mm |
203.12.013 | Blue Teflon Liner 3 m + Copper Liner Aluminum Ø1.0 - 1.2 mm |
203.12.014 | Yellow Teflon Liner 3 m + Copper Liner Aluminum Ø1.2 - 1.6 mm |
201.04.005 | Feed Roll KMD 502 Ø 38 mm Aluminum Ø 1.0 & 1.2 mm |
201.04.006 | Feed Roll KMD 502 Ø 38 mm Aluminum Ø 1.6 & 2.4 mm |
Optional Accessories | |
201.05.001 | Interpass Cable size 70 mm at 10 m Air Cooled - KMD 502 |
201.05.002 | Interpass Cable size 70 mm at 15 m Air Cooled - KMD 502 |
201.05.003 | Interpass Cable size 95 mm at 20 m Air Cooled - KMD 502 |
General Accessories | |
201.22.009 | Welding Helmet - Solarmatic Blue |
201.22.010 | Welding Helmet - Solarmatic Red |
201.22.011 | Welding Helmet - Solarmatic Green |
208.18.002 | Torch Holder - MIG |
Item Code | Item Name |
101.05.003.3 | KMD 502 - Mig Mag Package Water Cooled |
+ Wire feeder D 285 - 1 unit | |
+ feedroll for steel Ø 0.8/1.0 mm | |
+ interpass cable size 35 mm at 3 m air cooled - KMD 285 w/o Gas hose - 1 set | |
+ gas nipple size ¼ " | |
Standard Accessories | |
101.05.003 | Mig Mag Step Switch - KMD 502 |
201.11.006 | Plug to Ground Clamp 600 A, 70 mm2 at 3 m KMD 502 |
101.12.003 | D 300 - Water Cooler Machine |
208.11.003 | Water Cooled Hose Package - Blue & Red at 3 m 1 Set |
208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
208.12.002 | Interpass Gas Hose - Blue at 3 m |
Standard Alternative | |
250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
201.23.003 | CO2 Heater 220V Gas Regulator |
201.23.004 | CO2 Fin Type Gas Regulator |
201.04.001 | Feed Roll KMD 502 Ø 38 mm Steel Ø 1.0 & 1.2 mm |
201.04.002 | Feed Roll KMD 502 Ø 38 mm Steel Ø 0.6 & 0.8 mm |
201.04.003 | Feed Roll KMD 502 Ø 38 mm Steel Ø 1.6 & 2.4 mm |
201.04.007 | Feed Roll KMD 502 Ø 38 mm Flux Cored Ø 1.2 & 1.6 mm |
Optional Accessories | |
201.06.001 | Interpass Cable size 70 mm at 10 m Water Cooled - KMD 502 |
201.06.002 | Interpass Cable size 70 mm at 15 m Water Cooled - KMD 502 |
201.06.003 | Interpass Cable size 95 mm at 20 m Water Cooled - KMD 502 |
General Accessories | |
201.22.009 | Welding Helmet - Solarmatic Blue |
201.22.010 | Welding Helmet - Solarmatic Red |
201.22.011 | Welding Helmet - Solarmatic Green |
208.18.002 | Torch Holder - MIG |
Item Code | Item Name |
101.05.003.4 | KMD 502 - Mig Mag Package Water Cooled for Alu |
+ Wire feeder D 285 - 1 unit | |
+ feedroll for steel Ø 0.8/1.0 mm | |
+ interpass cable size 35 mm at 3 m - | |
air cooled - KMD 285 w/o Gas hose - 1 set | |
+ gas nipple size ¼ " | |
Standard Accessories | |
101.05.003 | Mig Mag Step Switch - KMD 502 |
201.11.006 | Plug to Ground Clamp 600 A, 70 mm2 at 3 m KMD 502 |
101.12.003 | D 300 - Water Cooler Machine |
208.11.003 | Water Cooled Hose Package - Blue & Red at 3 m 1 Set |
208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
208.12.002 | Interpass Gas Hose - Blue at 3 m |
201.23.001 | Argon Gas Regulator |
Standard Alternative | |
250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
203.12.007 | Red Teflon Liner 5 m + Copper Liner Aluminum Ø1.0 - 1.2 mm |
203.12.008 | Yellow Teflon Liner 5 m + Copper Liner Aluminum Ø1.2 - 1.6 mm |
203.12.006 | Blue Teflon Liner 5 m + Copper Liner Aluminum Ø0.8 - 0.9 mm |
203.12.009 | Blue Teflon Liner 4 m + Copper Liner Aluminum Ø0.8 - 0.9 mm |
203.12.010 | Red Teflon Liner 4 m + Copper Liner Aluminum Ø1.0 - 1.2 mm |
203.12.011 | Yellow Teflon Liner 4 m + Copper Liner Aluminum Ø1.2 - 1.6 mm |
203.12.012 | Blue Teflon Liner 3 m + Copper Liner Aluminum Ø0.8 - 0.9 mm |
203.12.013 | Blue Teflon Liner 3 m + Copper Liner Aluminum Ø1.0 - 1.2 mm |
203.12.014 | Yellow Teflon Liner 3 m + Copper Liner Aluminum Ø1.2 - 1.6 mm |
201.04.005 | Feed Roll KMD 502 Ø 38 mm Aluminum Ø 1.0 & 1.2 mm |
201.04.006 | Feed Roll KMD 502 Ø 38 mm Aluminum Ø 1.6 & 2.4 mm |
Optional Accessories | |
201.06.001 | Interpass Cable size 70 mm at 10 m Water Cooled - KMD 502 |
201.06.002 | Interpass Cable size 70 mm at 15 m Water Cooled - KMD 502 |
201.06.003 | Interpass Cable size 95 mm at 20 m Water Cooled - KMD 502 |
