Penggunaan Utama
● Lembaran logam baja
● Konstruksi dan galangan kapal
● Pengelasan pipa minyak dan gas
● Pengelasan di tempat
Keunggulan
● Mesin Mig Mag dengan desain baru dari Jepang berupa Wire Feeder Terpisah untuk industry ringan hingga berat, menyajikan hasil pengelasan yang sangat andal dan mutu sempurna.
● Teknologi rectifier Jepang yang terbaru untuk menghasilkan karakteristik pengelasan yang sangat baik untuk pengelasan Mig Mag CO2 dan gas campuran.
● Transformator choke yang andal di produksi secara optimal guna pengelasan yang lebih baik dan percikan api yang lebih sedikit.
● Pengelasan interval :dengan pengelasan dan waktu interval.
● Penyesuaian Post gas dan burn back.
● Uji gas dan pemasangan kawat.
● Penyesuaian voltase halus dan kasar.
● Sistem wire feeder yang kokoh, dengan dua feed roll bergigi, drive roll yang mudah diubah dan bisa dibalik serta mudah diatur.
● Inclined wire spool hub untuk transfer kawat dengan mulus dan hasil pengelasan yang lebih baik.
● Komponen internal dilindungi dari kerusakan dengan perlindungan terhadap panas akibat beban berlebih yang secara otomatis mematikan unit.
● Spot welding dengan spot time.
● Silinder gas yang mudah diisi dengan platform yang rendah.
● Kipas mesin yang kuat untuk sistem pendinginan maksimum.
| Spesifikasi | |
| Rentang pengelasan | 30 - 350 A |
| Tegangan beban | 15.5 - 31.5 V |
| Tegangan sirkuit terbuka | 43 V |
| Pengaturan tegangan | 3 x 10 |
| Welding current at 40 % duty cycle | - |
| Welding current at 60 % duty cycle | 350 A |
| Welding current at 100 % duty cycle | 275 A |
| Weldable Steel wire | 0.8 - 1.6 mm |
| Weldable Aluminum wire | 0.9 - 1.6 mm |
| Wire feed rate | 0.5 - 20 m/min |
| Input phase | 3 Phase |
| Tegangan utama | 380 V |
| Frekuensi | 50 / 60 Hz |
| Main fuse ( slow - blow ) | 22 A |
| Max. konsumsi tegangan 380 V | 14.5 KVA |
| Power factor | 0.96 |
| Index protection | IP 21 |
| Insulation class | H |
| Jenis pendingin | F |
| Emisi kebisingan | < 75 dB ( A ) |
| Dimensi mesin (P x L x T) | 850 x 374 x 725 mm |
| Berat mesin | 104 Kg |
| Dimensi wire feeder(P x L x T) | 540 x 242 x 448 mm |
| Berat wire feeder | 18 Kg |
| Item Code | Item Name |

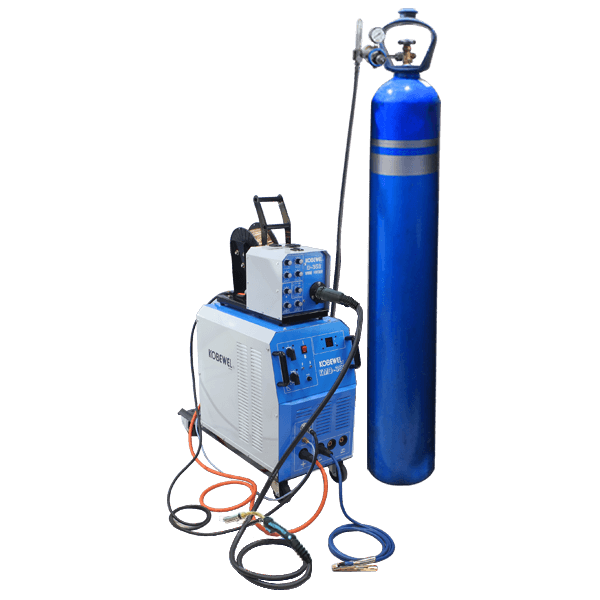

| 101.05.002.1 | KMD 352 - Mig Mag Air Cooled Package |
| + Wire feeder D 285 - 1 unit | |
| + feedroll for steel Ø 0.8/1.0 mm | |
| + interpass cable size 35 mm at 3 m air cooled - KMD 285 w/o Gas hose - 1 set | |
| + gas nipple size ¼ " | |
| Standard Accessories | |
| 101.05.002 | Mig Mag Step Switch - KMD 352 |
| 201.11.005 | Plug to Ground Clamp 600 A 50 mm2 at 3 m - KMD 352 |
| 208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 208.12.002 | Interpass Gas Hose - Blue at 3 m |
| Standard Alternative | |
| 250.02.003 | Mig Torch - Pro Mig 24 at 3 m |
| 250.02.004 | Mig Torch - Pro Mig 24 at 4 m |
| 250.02.005 | Mig Torch - Pro Mig 24 at 5 m |
| 250.02.006 | Mig Torch - Pro Mig 36 at 3 m |
| 250.02.007 | Mig Torch - Pro Mig 36 at 4 m |
| 250.02.008 | Mig Torch - Pro Mig 36 at 5 m |
| 201.23.003 | CO2 Heater 220V Gas Regulator |
| 201.23.004 | CO2 Fin Type Gas Regulator |
| 201.03.001 | Feed Roll KM & KMD Ø 35 mm Steel Ø 0.6 & 0.9 mm |
| 201.03.002 | Feed Roll KM & KMD Ø 35 mm Steel Ø 0.8 & 1.0 mm |
| 201.03.003 | Feed Roll KM & KMD Ø 35 mm Steel Ø 1.2 & 1.6 mm |
| 201.03.007 | Feed Roll KM & KMD Ø 35 mm Flux Cored Ø 1.2 & 1.6 mm |
| Optional Accessories | |
| 201.05.004 | Interpass Cable size 50 mm at 10 m Air Cooled - KMD 352 |
| 201.05.005 | Interpass Cable size 50 mm at 15 m Air Cooled - KMD 352 |
| 201.05.006 | Interpass Cable size 70 mm at 20 m Air Cooled - KMD 352 |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.002 | Torch Holder - MIG |
| Item Code | Item Name |
| 101.05.002.2 | KMD 352 - Mig Mag Air Cooled Package for Alu |
| + Wire feeder D 285 - 1 unit | |
| + feedroll for steel Ø 0.8/1.0 mm | |
| + interpass cable size 35 mm at 3 m air cooled - KMD 285 w/o Gas hose - 1 set | |
| + gas nipple size ¼ " | |
| Standard Accessories | |
| 201.11.005 | Plug to Ground Clamp 600 A 50 mm2 at 3 m - KMD 352 |
| 201.23.001 | Argon Gas Regulator |
| 208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 208.12.002 | Interpass Gas Hose - Blue at 3 m |
| Standard Alternative | |
| 201.03.005 | Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.8 & 1.0 mm |
| 201.03.004 | Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.6 & 0.9 mm |
| 201.03.006 | Feed Roll KM & KMD Ø 35 mm Aluminum Ø 1.2 & 1.6 mm |
| 250.02.006 | Mig Torch - Pro Mig 36 at 3 m |
| 250.02.007 | Mig Torch - Pro Mig 36 at 4 m |
| 250.02.008 | Mig Torch - Pro Mig 36 at 5 m |
| 250.02.003 | Mig Torch - Pro Mig 24 at 3 m |
| 250.02.004 | Mig Torch - Pro Mig 24 at 4 m |
| 250.02.005 | Mig Torch - Pro Mig 24 at 5 m |
| 203.12.007 | Red Teflon Liner 5 m + Copper Liner Aluminum Ø 1.0 - 1.2 mm |
| 203.12.008 | Yellow Teflon Liner 5 m + Copper Liner Aluminum Ø 1.2 - 1.6 mm |
| 203.12.006 | Blue Teflon Liner 5 m + Copper Liner Aluminum Ø 0.8 - 0.9 mm |
| 203.12.009 | Blue Teflon Liner 4 m + Copper Liner Aluminum Ø 0.8 - 0.9 mm |
| 203.12.010 | Red Teflon Liner 4 m + Copper Liner Aluminum Ø 1.0 - 1.2 mm |
| 203.12.011 | Yellow Teflon Liner 4 m + Copper Liner Aluminum Ø 1.2 - 1.6 mm |
| 203.12.012 | Blue Teflon Liner 3 m + Copper Liner Aluminum Ø 0.8 - 0.9 mm |
| 203.12.013 | Red Teflon Liner 3 m + Copper Liner Aluminum Ø 1.0 - 1.2 mm |
| 203.12.014 | Yellow Teflon Liner 3 m + Copper Liner Aluminum Ø 1.2 - 1.6 mm |
| Optional Accessories | |
| 201.05.004 | Interpass Cable size 50 mm at 10 m Air Cooled - KMD 352 |
| 201.05.005 | Interpass Cable size 50 mm at 15 m Air Cooled - KMD 352 |
| 201.05.006 | Interpass Cable size 70 mm at 20 m Air Cooled - KMD 352 |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.002 | Torch Holder - MIG |
| Item Code | Item Name |

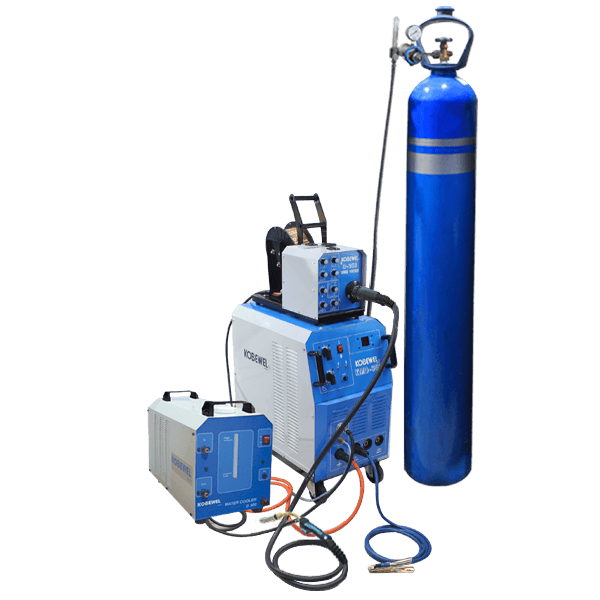

| 101.05.002.3 | KMD 352 - Mig Mag Water Cooled Package |
| + Wire feeder D 285 - 1 unit | |
| + feedroll for steel Ø 0.8/1.0 mm | |
| + interpass cable size 35 mm at 3 m air cooled - KMD 285 w/o Gas hose - 1 set | |
| + gas nipple size ¼ " | |
| Standard Accessories | |
| 101.12.001.1 | D 250 - Water Cooler Machine Package |
| 201.11.005 | Plug to Ground Clamp 600 A 50 mm2 at 3 m - KMD 352 |
| 208.11.003 | Water Cooled Hose Package Blue & Red at 3 m |
| 208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 208.12.002 | Interpass Gas Hose - Blue at 3 m |
| Standard Alternative | |
| 201.23.003 | CO2 Heater 220V Gas Regulator |
| 201.23.004 | CO2 Fin Type Gas Regulator |
| 299.04.003 | CO2 Heater 220V Gas Regulator |
| 250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
| 250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
| 250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
| 250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
| Optional Accessories | |
| 201.03.002 | Feed Roll KM & KMD Ø 35 mm Steel Ø 0.8 & 1.0 mm |
| 201.03.001 | Feed Roll KM & KMD Ø 35 mm Steel Ø 0.6 & 0.9 mm |
| 201.03.003 | Feed Roll KM & KMD Ø 35 mm Steel Ø 1.2 & 1.6 mm |
| 201.03.007 | Feed Roll KM & KMD Ø 35 mm Flux Cored Ø 1.2 & 1.6 mm |
| 201.06.004 | Interpass Cable size 50 mm at 10 m Water Cooled - KMD 352 |
| 201.06.005 | Interpass Cable size 50 mm at 15 m Water Cooled - KMD 352 |
| 201.06.006 | Interpass Cable size 70 mm at 20 m Water Cooled - KMD 352 |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.002 | Torch Holder - MIG |
| Item Code | Item Name |
| 101.05.002.4 | KMD 352 - Mig Mag Water Cooled Package for Alu |
| + Wire feeder D 285 - 1 unit | |
| + feedroll for steel Ø 0.8/1.0 mm | |
| + interpass cable size 35 mm at 3 m - | |
| air cooled - KMD 285 w/o Gas hose - 1 set | |
| + gas nipple size ¼ " | |
| Standard Accessories | |
| 101.12.001.1 | D 250 - Water Cooler Machine Package |
| 201.11.005 | Plug to Ground Clamp 600 A 50 mm2 at 3 m - KMD 352 |
| 201.23.001 | Argon Gas Regulator |
| 208.11.003 | Water Cooled Hose Package - Blue & Red at 3 m |
| 208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 208.12.002 | Interpass Gas Hose - Blue at 3 m |
| Standard Alternative | |
| 201.03.005 | Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.8 & 1.0 mm |
| 201.03.004 | Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.6 & 0.9 mm |
| 201.03.006 | Feed Roll KM & KMD Ø 35 mm Aluminum Ø 1.2 & 1.6 mm |
| 250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
| 250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
| 250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
| 250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
| 203.12.007 | Red Teflon Liner 5 m + Copper Liner Aluminum Ø 1.0 - 1.2 mm |
| 203.12.008 | Yellow Teflon Liner 5 m + Copper Liner Aluminum Ø 1.2 - 1.6 mm |
| 203.12.006 | Blue Teflon Liner 5 m + Copper Liner Aluminum Ø 0.8 - 0.9 mm |
| 203.12.009 | Blue Teflon Liner 4 m + Copper Liner Aluminum Ø 0.8 - 0.9 mm |
| 203.12.010 | Red Teflon Liner 4 m + Copper Liner Aluminum Ø 1.0 - 1.2 mm |
| 203.12.011 | Yellow Teflon Liner 4 m + Copper Liner Aluminum Ø 1.2 - 1.6 mm |
| 203.12.012 | Blue Teflon Liner 3 m + Copper Liner Aluminum Ø 0.8 - 0.9 mm |
| 203.12.013 | Red Teflon Liner 3 m + Copper Liner Aluminum Ø 1.0 - 1.2 mm |
| 203.12.014 | Yellow Teflon Liner 3 m + Copper Liner Aluminum Ø 1.2 - 1.6 mm |
| Optional Accessories | |
| 201.06.004 | Interpass Cable size 50 mm at 10 m Water Cooled - KMD 352 |
| 201.06.005 | Interpass Cable size 50 mm at 15 m Water Cooled - KMD 352 |
| 201.06.006 | Interpass Cable size 70 mm at 20 m Water Cooled - KMD 352 |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.002 | Torch Holder - MIG |
