Penggunaan Utama
● Fabrikasi baja
● Tangki logam
● Galangan kapal
● Lembaran logam
Keunggulan

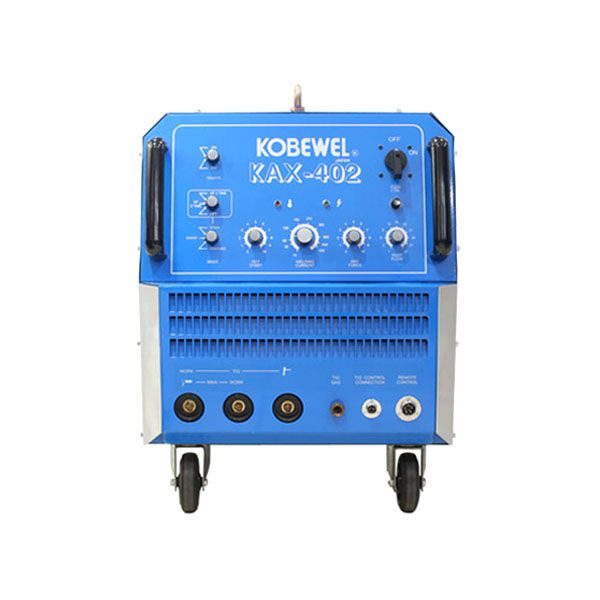

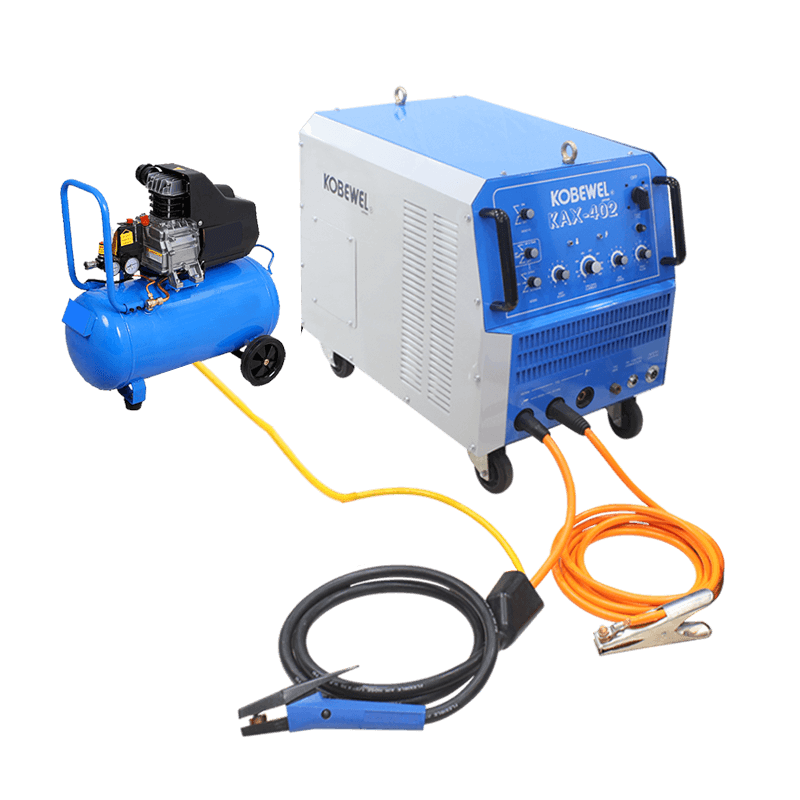

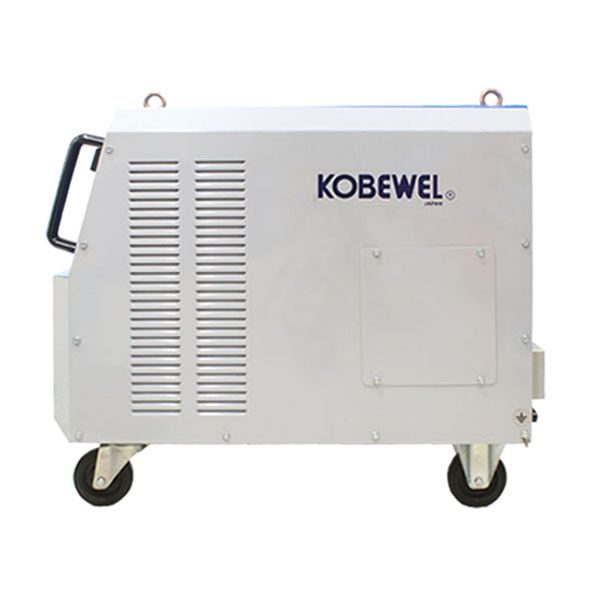

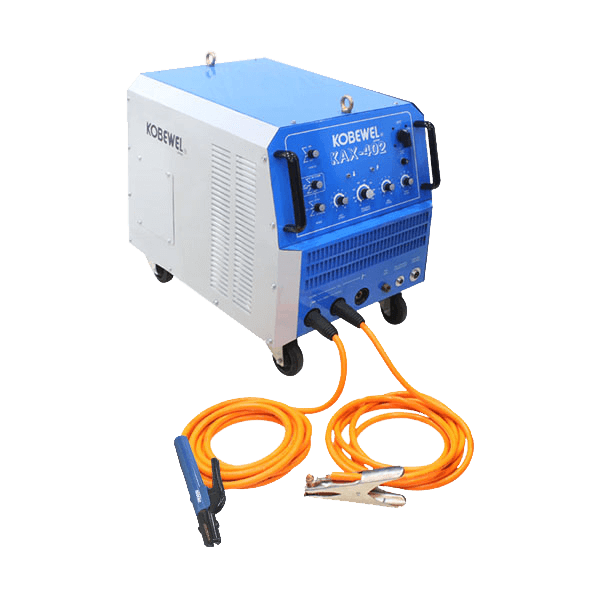

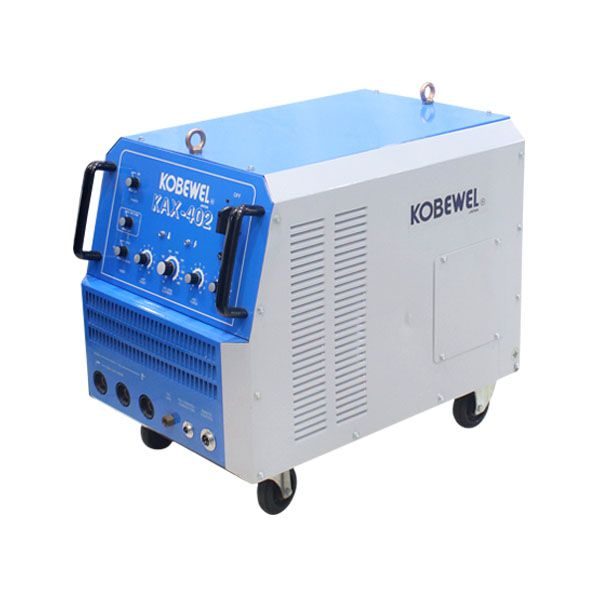

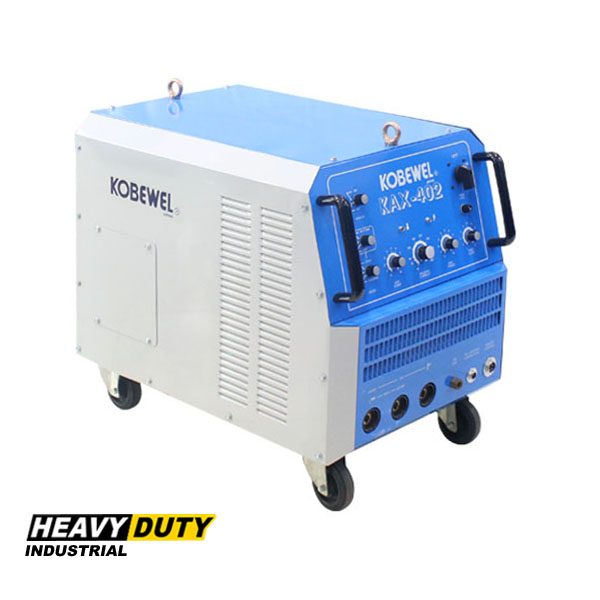

● Mesin las argon Kobewel – KAX 402 adalah mesin las argon dengan sumber daya tiga phase dengan kendali Thyristor, cocok untuk proses pengelasan MMA, TIG dan proses Air Carbon Arc Gouging dalam arus langsung untuk operasi pengelasan yang luar biasa.
● Arus pengelasan disesuaikan dengan kendali listrik untuk memastikan busur stabil yang sangat baik untuk pengelasan berkualitas tinggi.
● Sistem pendingin udara bertekanan dan perlindungan terhadap panas akibat kelebihan beban memperkuat mutu dan kekokohan mesin.
● HF / Lift Start dirancang untuk menetapkan pengaturan awal busur pada pengelasan TIG.
● Dirancang untuk serbaguna dan efisiensi guna memenihi kebutuhan penggunaan dewasa ini di industri menengah dan berat.
● Fungsi Hot Start dan Arc Force yang dapat disesuaikan untuk mengurangi percikan.
● Fungsi Anti Lengket.
| Spesifikasi | |
| Rentang pengelasan | 15 - 420 A |
| Tegangan sirkuit terbuka | 80 V |
| Current at 60 % ( 40°C ) | 420 A |
| Input power at 60 % | 32.3 KVA |
| Input phase | 3 Phase |
| Tegangan utama | 380 V |
| Power factor | 0.72 |
| Index protection | IP 23 |
| Insulation class | H |
| Pendingin | F |
| Dimensi (P x L x T) | 680 x 515 x 670 mm |
| Berat | 162 Kg |
| Item Code | Item Name |

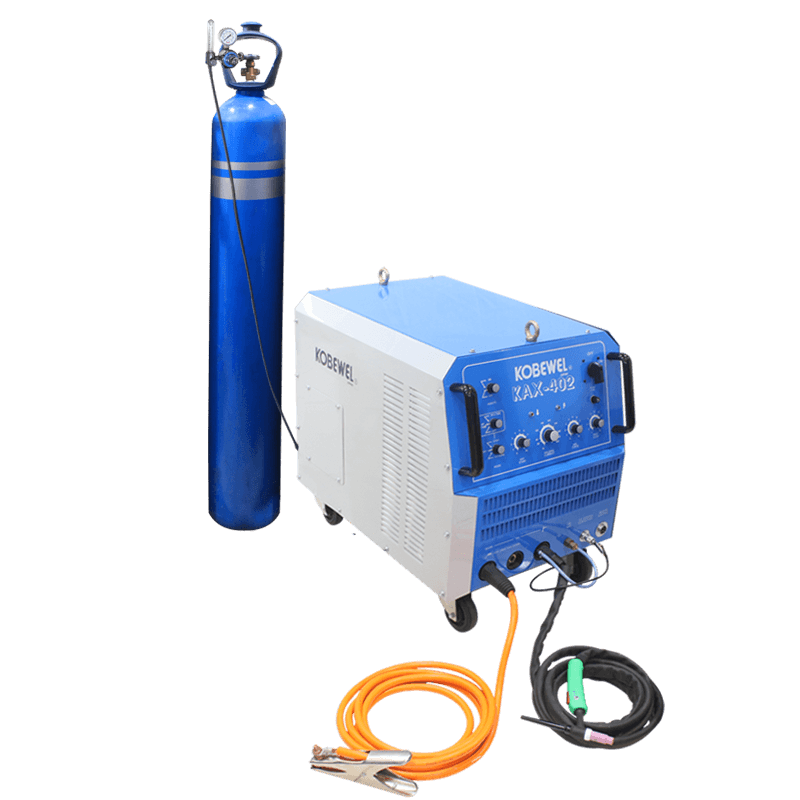

| 101.08.002.1 | KAX 402 - TIG Air Cooled Package |
| Standard Accessories | |
| 101.08.002 | TIG DC Thyristor - KAX 402 |
| 201.11.010 | Plug to Ground Clamp 600 A, 50 mm2 at 3 m KA Series |
| 201.26.005 | Kit - KAX 402 |
| 208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 201.23.001 | Argon Gas Regulator |
| Standard Alternative | |
| 203.16.007 | Tig Torch - SINTIG 17 at 4 m |
| 203.16.009 | Tig Torch - SINTIG 17 at 8 m |
| 203.16.010 | Tig Torch - SINTIG 26 at 4 m |
| 203.16.012 | Tig Torch - SINTIG 26 at 8 m |
| 203.16.015 | Tig Torch - SINTIG 9 at 4 m |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| General Accessories | |
| 137.01.001 | Tungsten Grinder - 240V-50/60HZ - Neutrix |
| 208.18.001 | Torch Holder - TIG |
| Item Code | Item Name |

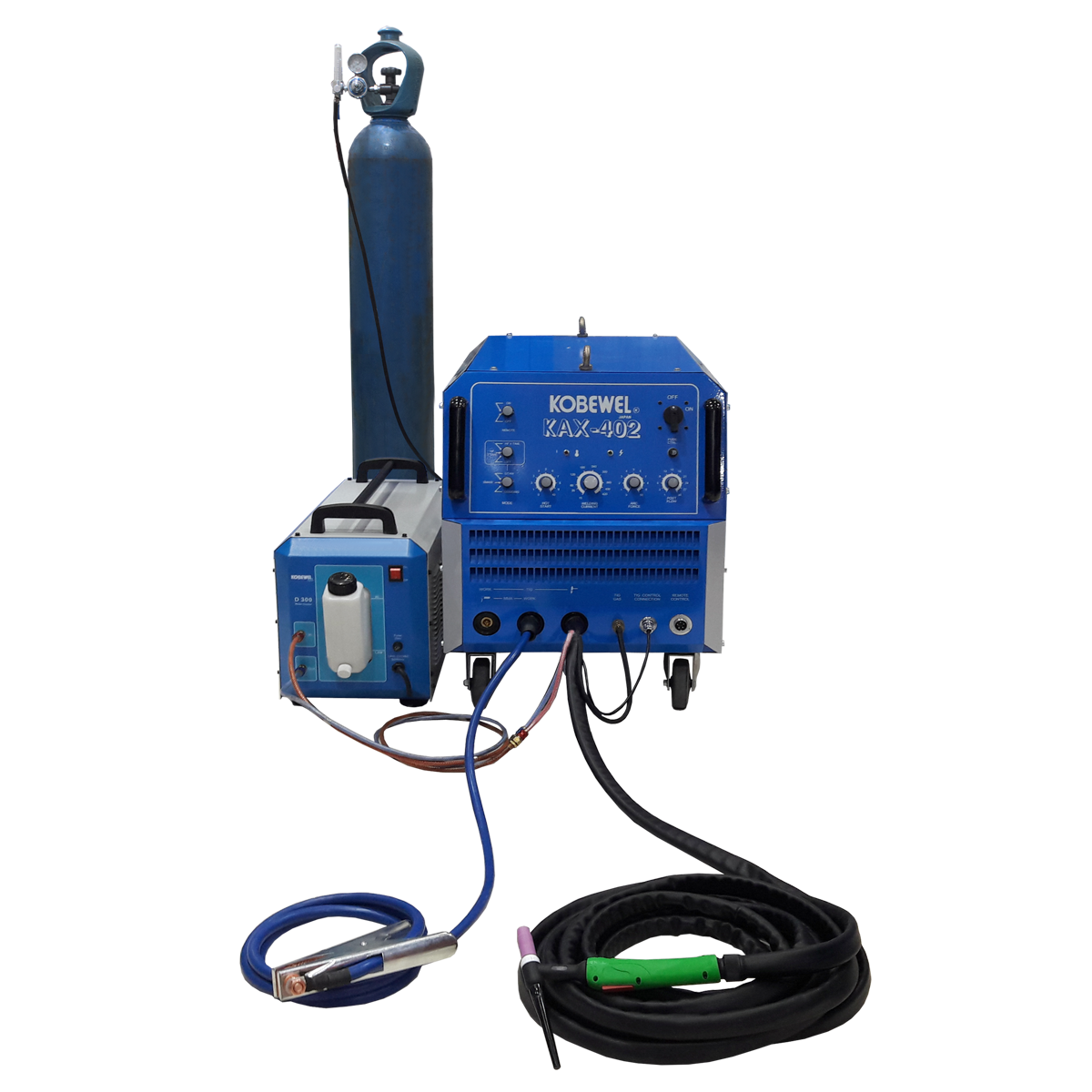

| 101.08.002.2 | KAX 402 - TIG Water Cooled Package |
| Standard Accessories | |
| 101.08.002 | TIG DC Thyristor - KAX 402 |
| 201.11.010 | Plug to Ground Clamp 600 A, 50 mm2 at 3 m KA Series |
| 201.26.005 | Kit - KAX 402 |
| 208.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 201.23.001 | Argon Gas Regulator |
| 101.12.001.1 | D 250 - Water Cooler Machine Package |
| 208.11.001 | Water Cooled Hose Package - Blue & Red at 1 m |
| Standard Alternative | |
| 203.16.017 | Tig Torch - Water Cooled - SINTIG 20 at 4 m |
| 203.16.013 | Tig Torch - Water Cooled - SINTIG 18 at 4 m |
| 203.16.014 | Tig Torch - Water Cooled - SINTIG 18 at 8 m |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| General Accessories | |
| 137.01.001 | Tungsten Grinder - 240V-50/60HZ - Neutrix |
| 208.18.001 | Torch Holder - TIG |
| Optional Accessories | |
| 208.03.005 | Plug to Electrode Holder 400 A, 50 mm2 at 5 m |
| 208.03.006 | Plug to Electrode Holder 400 A, 50 mm2 at 10 m |
| 208.03.007 | Plug to Electrode Holder 400 A, 50 mm2 at 20 m |
| 208.03.008 | Plug to Electrode Holder 400 A, 50 mm2 at 25 m |
| 208.04.007 | Plug to Ground Clamp 600 A, 50 mm2 at 5 m |
| 208.04.008 | Plug to Ground Clamp 600 A, 50 mm2 at 10 m |
