Keunggulan Produk
● Torsi yang kuat dan bobot yang lebih ringan di antara yang lain di kelasnya.
● Dilengkapi dengan empat roda gigi RPM, untuk berbagai aplikasi.
● Sistem kopling pengaman, yang akan memperpanjang masa pakai armature dan mata bor.
● Pelindung isolasi ganda dan gangguan radio.
● Mematuhi peraturan VDE dan CEE.
● Konstruksi logam dan kayu, konstruksi mesin, pabrik dan kendaraan.
| Spesifikasi | |
| Daya input | 1.700 Watt |
| Tegangan | 230 V - 50/60 Hz |
| Frekuensi | 50 - 60 Hz |
| Kecepatan tanpa beban | Gear 1 : 215 RPM |
| Gear 2 : 330 RPM | |
| Gear 3 : 460 RPM | |
| Gear 4 : 680 RPM | |
| Max drilling Ø wood / alu / steel | 100 / 60 / 32 mm |
| Spindle connection | MT 3 |
| Collar diameter | 65 mm |
| Protection class | IP 20 |
| Berat | 6.9 Kg |
| Capacity | |
| Twist drill Ø | 32 mm |
| Morse taper | MT 3 |
| Item Code | Item Name |

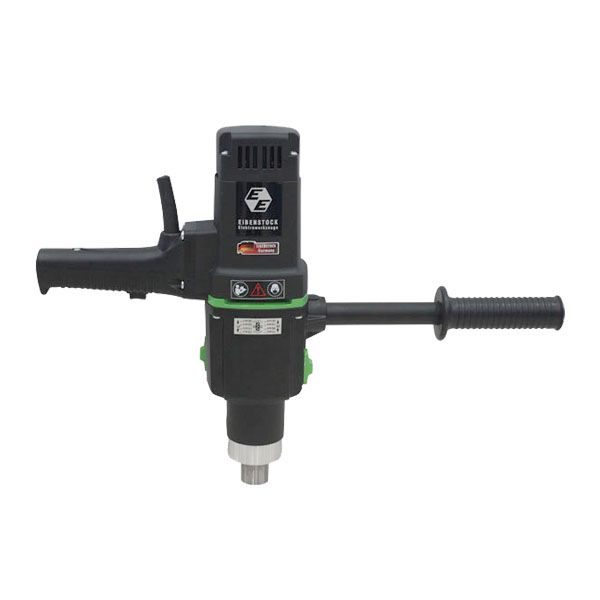

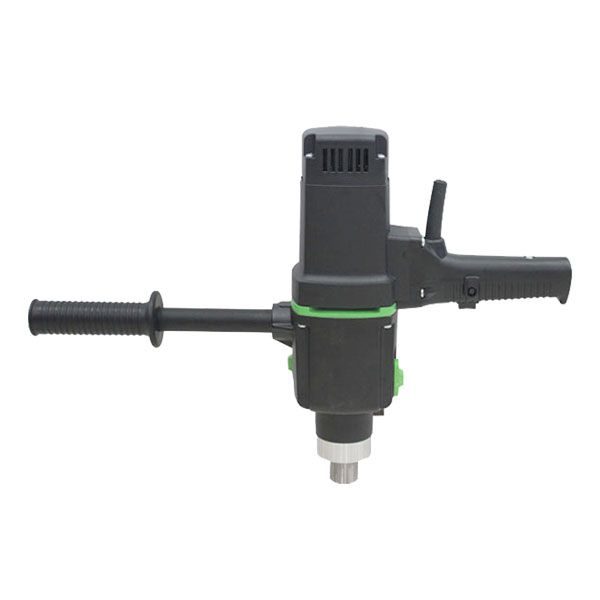

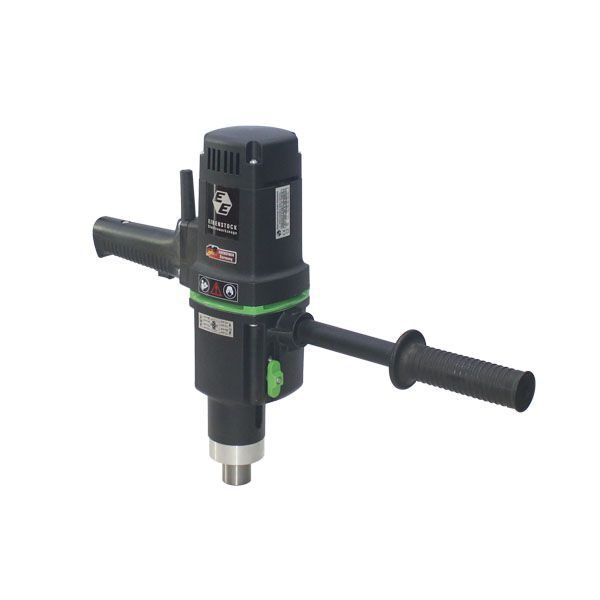

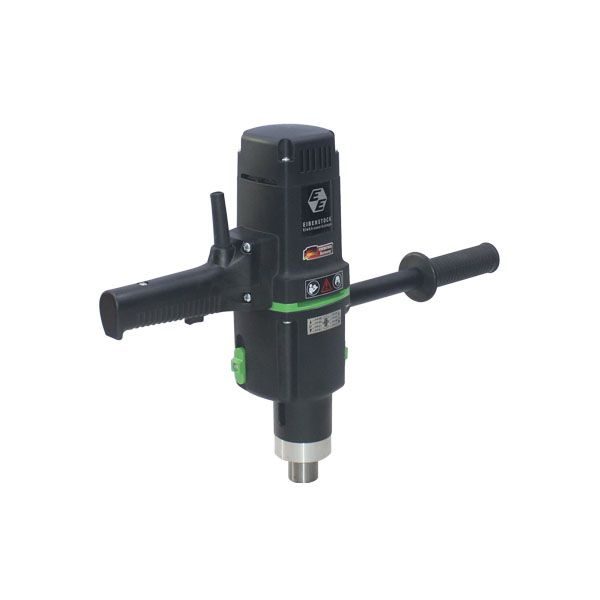

| 112.01.001 | Drilling Machine - EHB 32/4.2 |
| + Drill drifter - 1 set | |
| Optional Accessories | |
| 209.14.003 | Quick Change Tapping Adaptor Size 2 MT 3 |
| 209.12.003 | Quick Drill Chuck + Weldon Shank for twist drills Ø 1 - 13 mm |
| 225.06.011.1 | Quick Chuck - Universal Shank - Ø 1-13 mm |
| 209.12.027 | Drill Chuck + Weldon Shank for twist drills Ø 1 - 13 mm |
| 209.12.001 | HSS countersink and deburrer with weldon shank Ø 25 mm |
| 209.12.002 | HSS countersink and deburrer with weldon shank Ø 40 mm |
| 209.12.004 | Reducing sleeve MT 3 to MT 2 |
| 209.12.005 | Tool Holder AMT 2 with Internal Cooling |
| 225.06.001 | Tool Holder - MT2 - 19.05 x 50, with Internal Cooling |
| 209.12.006 | Tool Holder AMT 3 with Internal Cooling |
| 225.06.002 | Tool Holder - MT3 - 19.05 x 50, with Internal Cooling |
| 209.12.020 | Tool Holder AMT 3 depth 110 mm with internal cooling |
| 209.12.007 | Tool Holder AL-3 |
| 209.12.012 | Quick Drill Chuck + Morse Taper No. 3 shank for Twist drill Ø 1 - 16 mm |
| 209.12.028 | Drill Chuck + Morse Taper No. 3 shank for Twist drill Ø 1 - 16 mm |
| 209.12.023 | Drill Chuck + Morse Taper No. 2 shank for Twist drill Ø 1 - 16 mm |
| 209.14.001 | Tapping Attachment M3 - M12 |
| 209.14.002 | Tapping Attachment M10 - M20 |
| 209.12.010 | Bio 2000 |
| 308.02.001 | Coolant 2000 at 1 Liter |
| 308.02.002 | Coolant 2000 at 5 Liter |
