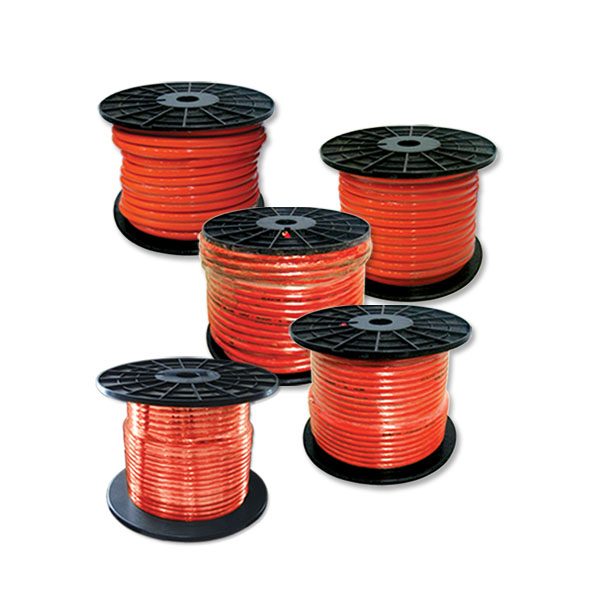

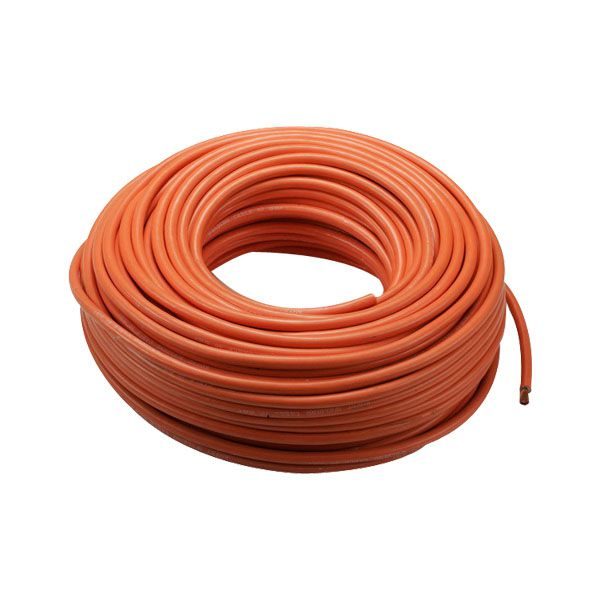

Premium Welding Cable – size 35 – 120 mm2

Button

Bagikan ke :

Advantageous

● DACH premium welding cable is designed to provide the optimum combination of flexibility & strength.

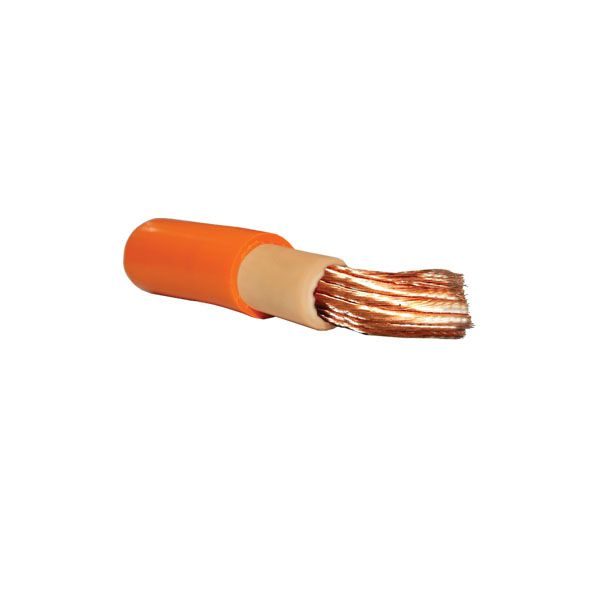

● Very fine 0.19 mm copper wires are used to construct a flexible conductor that complies with all international standards. A double insulation system is then extruded over the conductor to provide electrical strength and durability.
● The outer sheath is a specially formulated Synthetic Rubber compound that resists oils, solvents, ozone, sea-water and prolonged ultraviolet exposure. Furthermore, the bright orange sheath does not sustain combustion and self-extinguish immediately upon removal of the flame sources.
● Meter marking, every meter along the cable, a descending number is printed indicating the balance of cable remaining. This not only provides a guarantee on the correct cable quantity, but also very useful for stock-takes and issuing of cable to customers.

Specifications
Conductor	Plain Annealed Copper wire
Insulation	PVC 90 °C , White color
Sheath	NBR 90 °C , Orange color
Voltage	600 / 1000 Volts
Standards	AS 3147, AS 1995, IEC 245-6

		Duty Cycle
Cable	100%	60%	30%	20%
35 mm2	195 A	250 A	355 A	440 A
50 mm2	250 A	320 A	450 A	560 A
70 mm2	310 A	400 A	560 A	690 A
95 mm2	380 A	480 A	680 A	830 A
120 mm2	435 A	560 A	785 A	960 A

Cable Size	Packaging In Roll	Overall Diameter	Approx. Weight per 50 m	Approx. Weight per 100 m	DC Resistance per 100 m
35 mm2	100 m	13.5 mm	-	40 Kg	0.530 Ω
50 mm2	100 m	15.0 mm	-	55 Kg	0.375 Ω
70 mm2	100 m	17.5 mm	-	78 Kg	0.267 Ω
95 mm2	50 m	19.5 mm	49 Kg	-	0.198 Ω
120 mm2	50 m	21.5 mm	57 Kg	-	0.161 Ω
95 mm2	100 m	19.5 mm	-	96 Kg	0.198 Ω
120 mm2	100 m	21.5 mm	-	113 Kg	0.161 Ω
